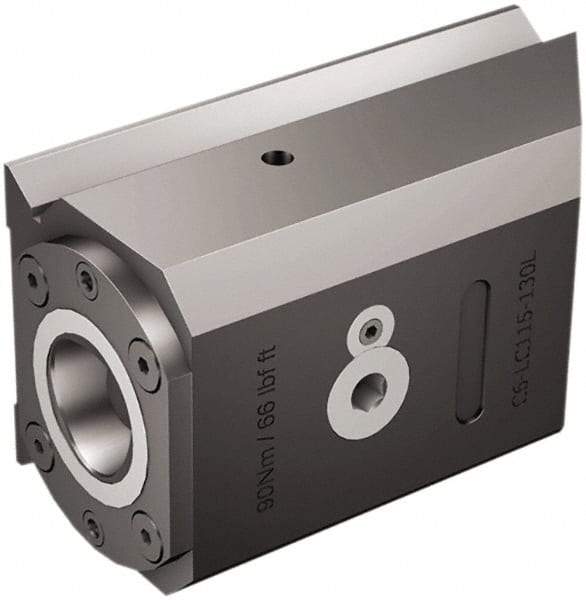

Sandvik Coromant - Right Hand Cut, C1 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 100mm Square Shank Diam, 6.26" OAL, Through Coolant
Item #: 49670037
Brand: Sandvik Coromant
Model #: 6251589
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Connection Size | C1 |
| Cutting Direction | Right Hand |
| Shank Diameter (mm) | 100.00 |
| Shank Diameter (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Head Height (mm) | 160.00 |
| Head Height (Decimal Inch) | 6.2992 |
| Overall Length (mm) | 159.00 |
| Overall Length (Decimal Inch) | 6.25984 |
| Head Length (Decimal Inch) | 3.5433 |
| Head Length (mm) | 90.00 |
