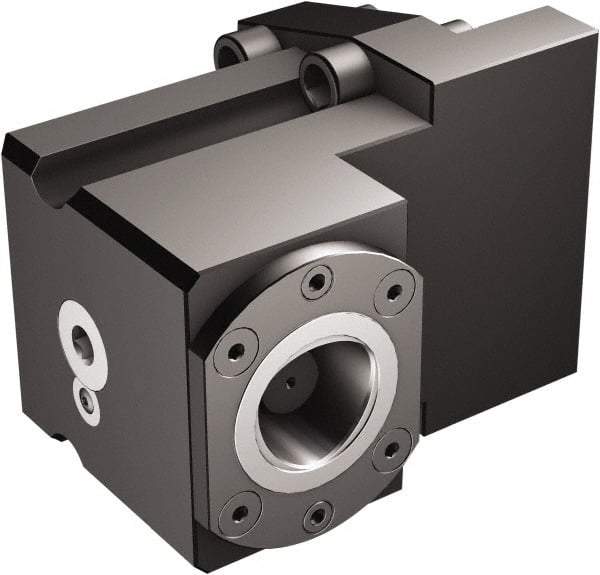

Sandvik Coromant - Left Hand Cut, C6 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 63mm Square Shank Diam, 6.457" OAL, Through Coolant
Item #: 49665763
Brand: Sandvik Coromant
Model #: 6538850
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Connection Size | C6 |
| Cutting Direction | Left Hand |
| Shank Diameter (mm) | 63.00 |
| Shank Diameter (Decimal Inch) | 2.4803 |
| Through Coolant | Yes |
| Head Height (mm) | 142.00 |
| Head Height (Decimal Inch) | 5.5906 |
| Overall Length (mm) | 164.00 |
| Overall Length (Decimal Inch) | 6.45669 |
| Head Length (Decimal Inch) | 2.9134 |
| Head Length (mm) | 74.00 |
