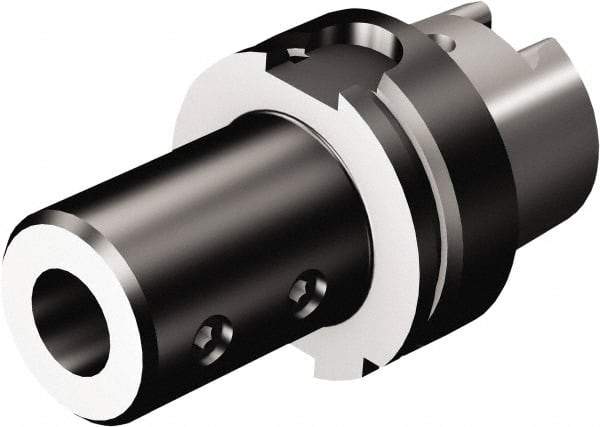

Sandvik Coromant - 40mm Inside Hole Diam, 4.3307" Projection, Drill Adapter - 3-15/16" Body Diam, Through Coolant
Item #: 49551112
Brand: Sandvik Coromant
Model #: 5759946
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Hole Diameter (mm) | 40.00 |
| Projection (mm) | 110 |
| Projection (Decimal Inch) | 4.33071 |
| Body Diameter (mm) | 100.00 |
| Body Diameter (Decimal Inch) | 3.9370 |
| Nose Diameter (mm) | 65.00 |
| Nose Diameter (Decimal Inch) | 2.5591 |
| Projection (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Through Coolant | Yes |
