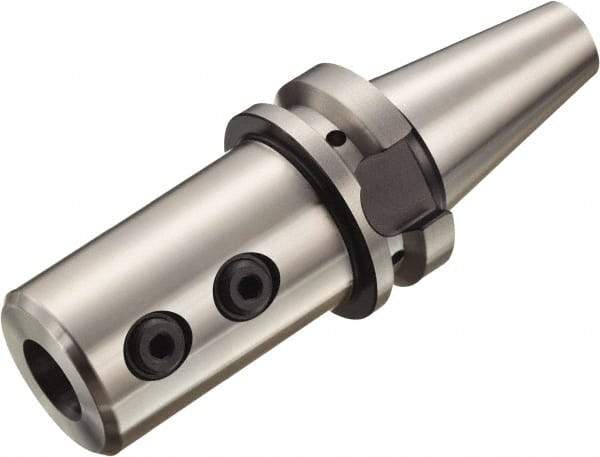

Sandvik Coromant - 16mm Inside Hole Diam, 3.1496" Projection, Drill Adapter - 1.811" Body Diam, Through Coolant
Item #: 49550809
Brand: Sandvik Coromant
Model #: 6265105
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Hole Diameter (mm) | 16.00 |
| Projection (mm) | 80 |
| Projection (Decimal Inch) | 3.14961 |
| Body Diameter (mm) | 46.00 |
| Body Diameter (Decimal Inch) | 1.8110 |
| Nose Diameter (mm) | 36.00 |
| Nose Diameter (Decimal Inch) | 1.4173 |
| Projection (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 128.40 |
| Overall Length (Decimal Inch) | 5.0551 |
| Through Coolant | Yes |
