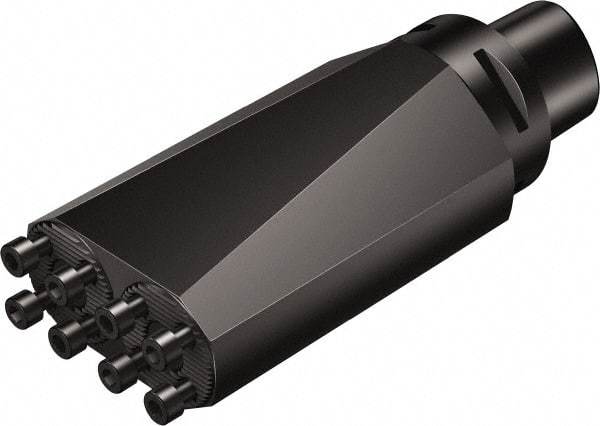

Sandvik Coromant - 3.1496" Max Cut, 3.1496" Shank Diam, CoroTurn SL Mini Turret - 180mm Projection, 3.189" Head Width, 1.5748" Nose Diam, C8 Series, Through Coolant
Item #: 49461478
Brand: Sandvik Coromant
Model #: 6260259
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | CoroTurn SL Mini Turret |
| Maximum Cutting Tool Size (mm) | 80.00 |
| Maximum Cutting Tool Size (Decimal Inch) | 3.1496 |
| Projection (Decimal Inch) | 7.0866 |
| Projection (mm) | 180.00 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 40.00 |
| Nose Diameter (Decimal Inch) | 1.5748 |
| Head Width (mm) | 81.00 |
| Head Width (Decimal Inch) | 3.1890 |
| Collet Series | C8 |
| Shank Diameter (mm) | 80.00 |
| Shank Diameter (Decimal Inch) | 3.1496 |
