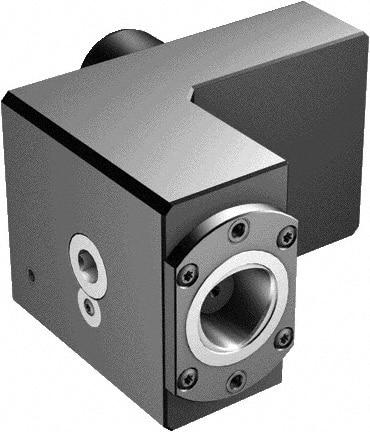

Sandvik Coromant - Right Hand Cut, C4 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 1" Square Shank Diam, 6.299" OAL, Through Coolant
Item #: 49459951
Brand: Sandvik Coromant
Model #: 6538867
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Connection Size | C4 |
| Cutting Direction | Right Hand |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Yes |
| Head Height (mm) | 84.00 |
| Head Height (Decimal Inch) | 3.3071 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
