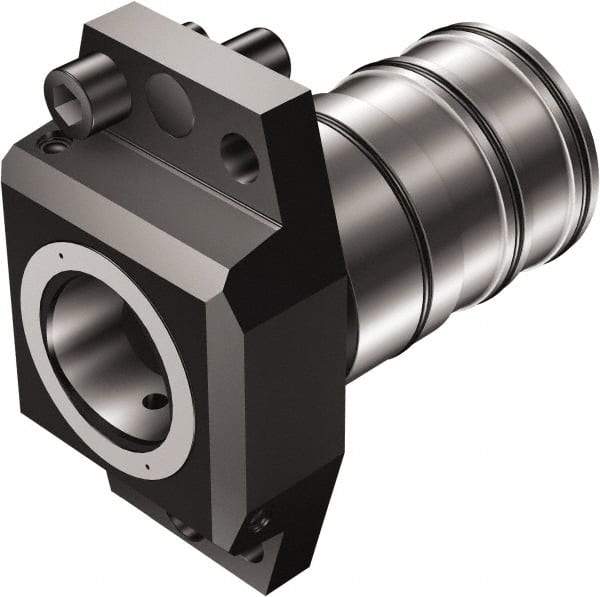

Sandvik Coromant - Neutral Cut, C8 Modular Connection, Round Shank Lathe Modular Clamping Unit - 1" Square Shank Diam, 6.85" OAL, Through Coolant
Item #: 49416068
Brand: Sandvik Coromant
Model #: 5729989
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Round Shank |
| Connection Size | C8 |
| Cutting Direction | Neutral |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Yes |
| Head Height (mm) | 180.00 |
| Head Height (Decimal Inch) | 7.0866 |
| Overall Length (mm) | 174.00 |
| Overall Length (Decimal Inch) | 6.8504 |
| Shank Length (mm) | 120.00 |
| Shank Length (Decimal Inch) | 4.7244 |
