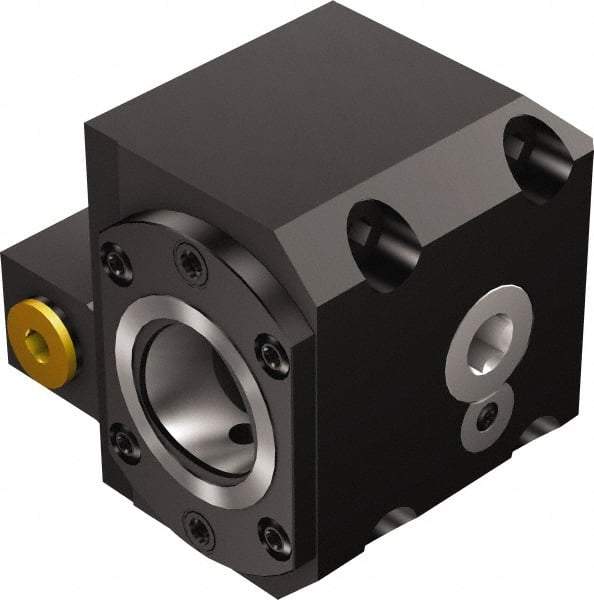

Sandvik Coromant - Left Hand Cut, C5 Modular Connection, Square Shank Lathe Modular Clamping Unit - 50mm Square Shank Diam, 32mm Square Shank Width, 4.35" OAL, Through Coolant
Item #: 49413768
Brand: Sandvik Coromant
Model #: 5728253
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Square Shank |
| Connection Size | C5 |
| Cutting Direction | Left Hand |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Square Shank Width (mm) | 32.00 |
| Square Shank Width (Decimal Inch) | 1.2598 |
| Through Coolant | Yes |
| Head Height (mm) | 92.00 |
| Head Height (Decimal Inch) | 3.6221 |
| Overall Length (mm) | 110.50 |
| Overall Length (Decimal Inch) | 4.3504 |
| Coolant Hole Thread Size | G 1/4 |
