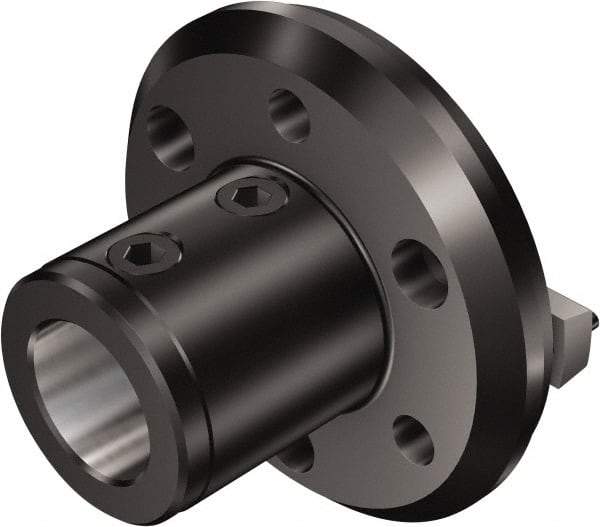

Sandvik Coromant - 03 Modular Connection, 1.5748" Inside Hole Diam, 3.5433" Projection, Drill Adapter - 5.3543" Body Diam, Through Coolant
Item #: 49403702
Brand: Sandvik Coromant
Model #: 5760593
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Size | 03 |
| Inside Hole Diameter (mm) | 40.00 |
| Inside Hole Diameter (Decimal Inch) | 1.5748 |
| Projection (mm) | 90.00 |
| Body Diameter (mm) | 136.00 |
| Body Diameter (Decimal Inch) | 5.3543 |
| Nose Diameter (mm) | 65.00 |
| Nose Diameter (Decimal Inch) | 2.5591 |
| Projection (Decimal Inch) | 3.5433 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
