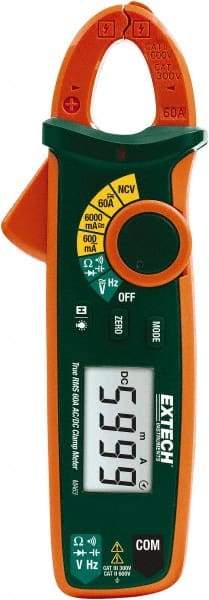

Extech - MA63, CAT III, Digital True RMS Clamp Meter with 0.7" Clamp On Jaws - 600 VAC/VDC, 60 AC/DC Amps, Measures Voltage, Capacitance, Continuity, Current, Frequency, Resistance
Item #: 49280787
Brand: Extech
Model #: MA63
Exact Tooling IR#: 04
Features and Benefits
Clamp on meters are designed with jaws that open and close to fit around a conductor to measure AC or DC currents.
| Product Specifications | |
|---|---|
| Measures | Voltage; Capacitance; Continuity; Current; Frequency; Resistance |
| Jaw Style | Clamp On |
| Jaw Capacity (Decimal Inch) | 0.7000 |
| CAT Rating | CAT III |
| Maximum DC Voltage | 600 |
| Maximum AC Voltage | 600 |
| Maximum DC Current (A) | 60 |
| Maximum AC Current (A) | 60 |
| Maximum Resistance (Megohms) | 60 |
| Maxium Capacitance (mF) | 62.000 |
| Display Type | Digital |
| AC Wave Measurement | True RMS |
| Additional Functions | Diode Test |
| Includes | Test Leads; Case; (2) AAA Batteries |
| Frequency | 60kHz |
| Counts | 6000 |
| Battery Type | AAA |
| Standards Met | CE |
| PSC Code | 6625 |
