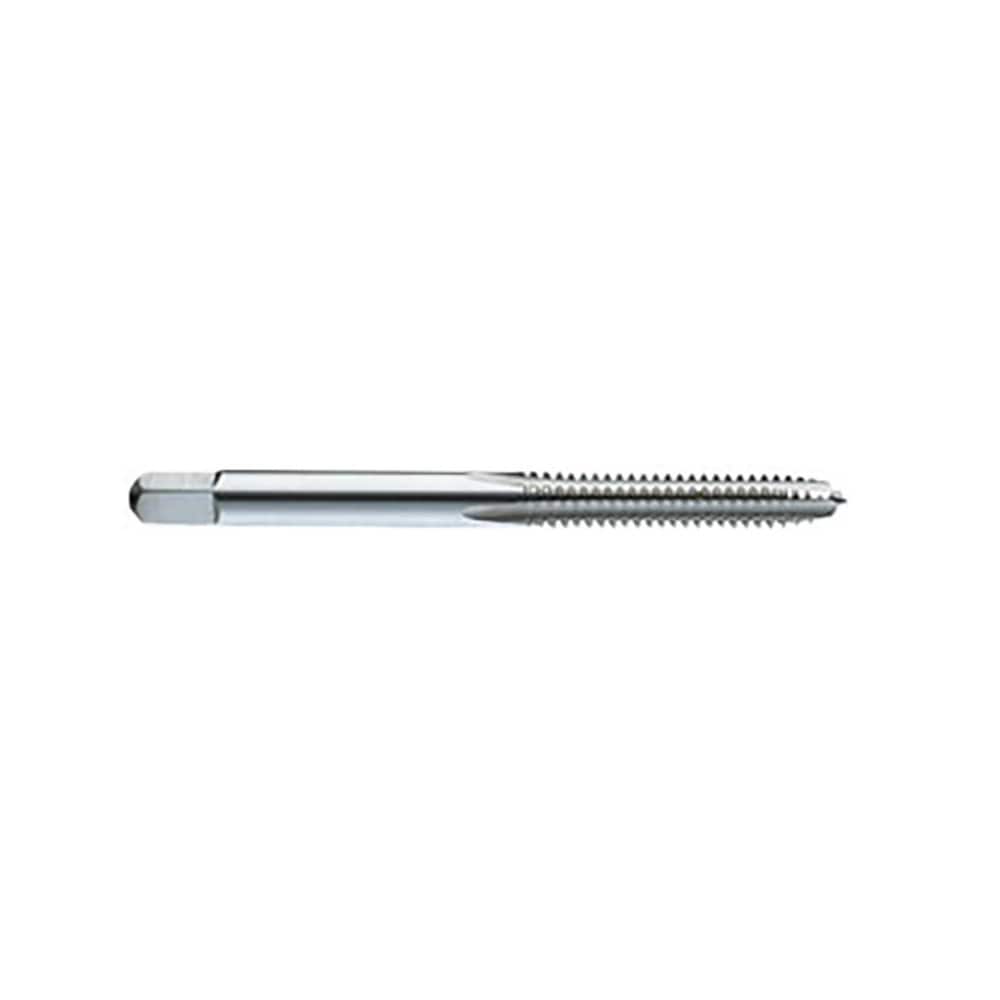

Straight Flute Tap: #6-32 UNC, 3 Flute, Plug Chamfer, 2B Class of Fit, HSS, Bright/Uncoated Finish
Item #: 00574939
Brand: Made in USA
Model #: 10133-00-B
Product Specifications
| Tap Type | Standard |
| Thread Size (Inch) | #6-32 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Material | High-Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 2B |
| Thread Limit | H3 |
| Number Of Flutes | 3 |
| Oversize | No |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Threads per Inch | 32 |
| Thread Length (Inch) | 11/16 |
| Application | Blind Hole Threading; Through-Hole Threading |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1100 |
| Series | 106 |
| UNSPSC Code | 23241600 |
| Tap Type | Standard |
| Thread Size (Inch) | #6-32 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Material | High-Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 2B |
| Thread Limit | H3 |
| Number Of Flutes | 3 |
| Oversize | No |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Threads per Inch | 32 |
| Thread Length (Inch) | 11/16 |
| Application | Blind Hole Threading; Through-Hole Threading |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1100 |
| Series | 106 |
| UNSPSC Code | 23241600 |
| MSC Part # | 00574939 |
| Mfr Part # | 10133-00-B |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
