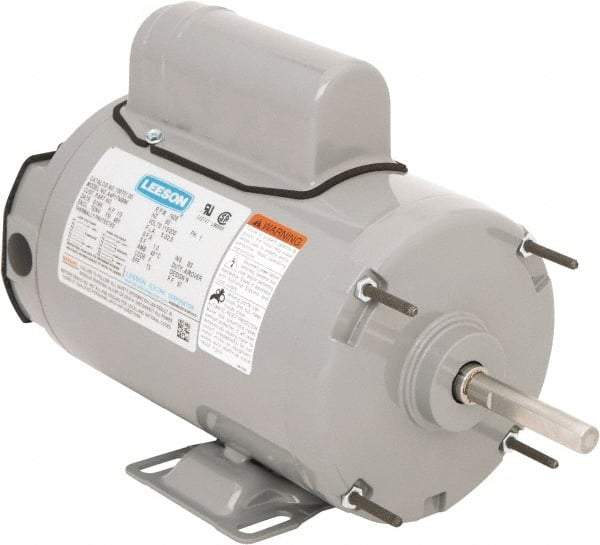

Leeson - 1/3 Max hp, 1,625 Max RPM, Electric AC DC Motor - 115/230 V Input, Single Phase, 48Y Frame, 1/2" Shaft Diam, Rigid Base Mount, TEAO Enclosure
Item #: 49140684
Brand: Leeson
Model #: 100700.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase |
| Type of Enclosure | TEAO |
| Maximum HorsePower | 1/3 |
| Minimum Horsepower | 0.333 |
| Name Plate RPMs | 1625 |
| Phase | Single |
| Input Voltage | 115/230 |
| Frame Size | 48Y |
| Full Load Amperage | 1.6 |
| Mount Type | Rigid Base |
| Bearing Type | Double Sealed Ball Bearings |
| Shaft Diameter (Decimal Inch) | 0.5000 |
| Service Factor Rating | 1.00 |
| Frame Material | Steel |
| Insulation Class | B |
| Applications | Agriculture; Fan |
| Maximum RPM | 1625 |
| PSC Code | 6105 |
