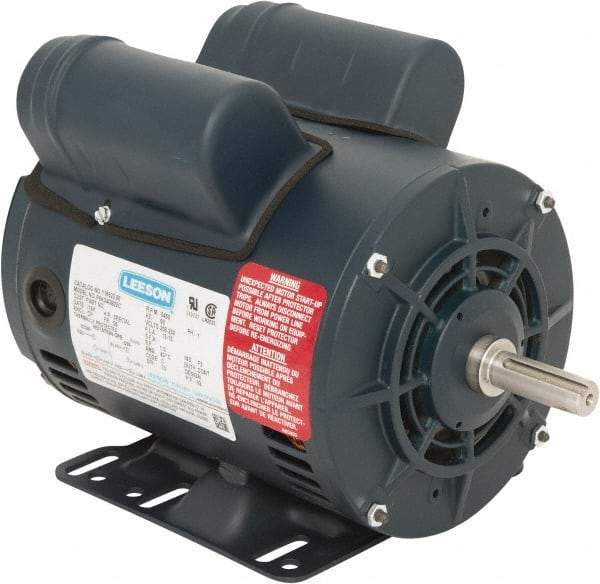

Leeson - 1/2 Max hp, 3,600 Max RPM, Electric AC DC Motor - 230 V Input, Single Phase, 56 Frame, 5/8" Shaft Diam, Rigid Base Mount, ODP Enclosure
Item #: 49140080
Brand: Leeson
Model #: 116523.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase |
| Type of Enclosure | ODP |
| Maximum HorsePower | 1/2 |
| Minimum Horsepower | 1/2 |
| Name Plate RPMs | 3450 |
| Phase | Single |
| Input Voltage | 230 |
| Frame Size | 56 |
| Full Load Amperage | 15 |
| Mount Type | Rigid Base |
| Bearing Type | Double Shielded Ball |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Service Factor Rating | 1.00 |
| Frame Material | Steel |
| Insulation Class | F |
| Applications | Compressor; Pumps; Fan; Blower |
| Maximum RPM | 3600 |
| PSC Code | 6105 |
