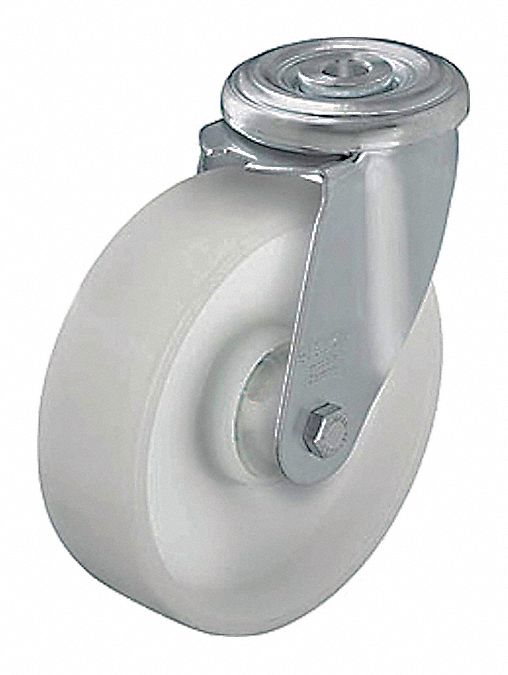

Bolt Hole Caster, Light-Duty Load Rating Range, 2-15/16" Wheel Dia., Inch System of Measurement
Item #: 489C04
Brand: GRAINGER APPROVED
Supplier #: LER-PO 75R
Exact Tooling IR#: 08
| Product Specifications | |
|---|---|
| Item | Bolt Hole Caster |
| Caster Load Rating Range | Light-Duty |
| Load Rating Range | Light-Duty |
| Wheel Dia. | 2-15/16" |
| System of Measurement | Inch |
| Wheel Width | 1-1/4" |
| Load Rating | 330 lb. |
| Replacement Wheel | Mfr. No. PO 75/12G |
| Wheel Color | White |
| Overall Height | 3-15/16" |
| Wheel/Tread Material | Nylon |
| Wheel Core Material | Nylon |
| Core Color | White |
| Caster Wheel Bearings | Roller |
| Bolt Hole Dia. | 1/2" |
| Mounting Bolt Dia. | 15/32" |
| Swivel Raceway Type | Double Ball |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Features | Corrosion Resistant, Soft Tread, Hollow |
| Application | Food Service, Medical and Institutional Equipment |
| Standards | DIN EN 12530, ICWM |
| Caster Temp. Range Available | Yes |
| Operating Temperature Range | -20 Degrees to 160 Degrees F |
| Non-Marking | Yes |
| Tread Shape | Standard |
| Number of Wheels | 1 |
| Caster Product Group | Swivel Caster |
| Caster Brake Included | No |
| Caster Stem Type | Hollow Kingpin |
| Caster Sub-Type | Swivel |
| UNSPSC # | 31162701 |
| Country of Origin | Germany |
