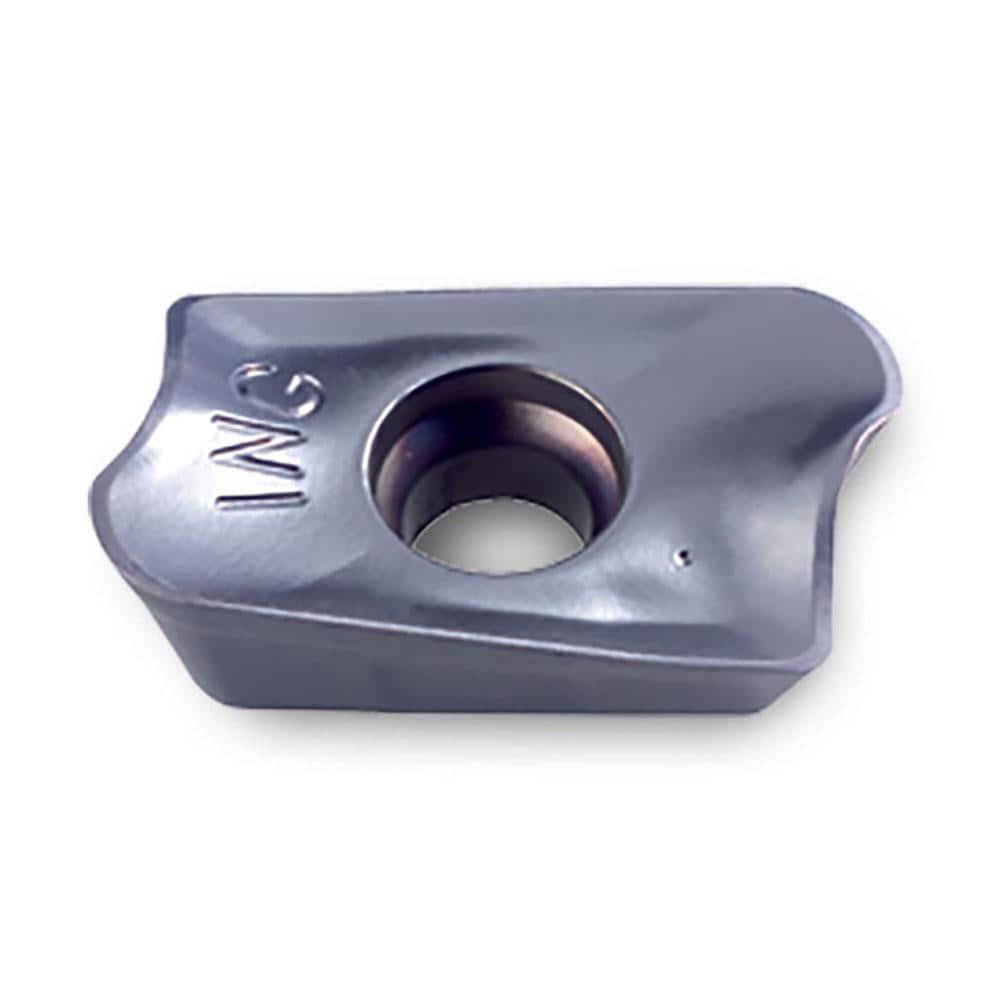

AOMT180532R IN2005 Carbide Milling Insert TiAlN Finish, 0.767″ Long x 0.228″ Thick x 0.422″ Wide
Item #: 48793160
Brand: Ingersoll Cutting Tools
Model #: 5804915
Product Specifications
| Insert Style | AOMT |
| Insert Size Code | 180532 |
| Insert Size | 180532 |
| Insert Material | Solid Carbide |
| Material Grade | C2 |
| Manufacturer Grade | IN2005 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Series | AOMT18 |
| Coating Process | PVD |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.6500 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Iso Code | AOMT180532R IN2005 |
| Standards | ISO |
| Shape | Parallelogram |
| Coating/Finish | Coated |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4220 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2280 |
| Length (Decimal Inch - 4 Decimals) | 0.7670 |
