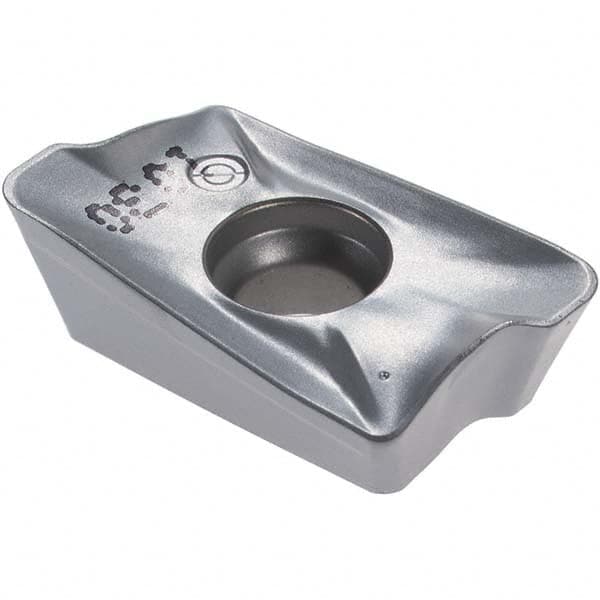

AOMT180516R IN1030 Carbide Milling Insert TiCN Finish
Item #: 48793103
Brand: Ingersoll Cutting Tools
Model #: 5804908
Product Specifications
| Insert Style | AOMT |
| Insert Size Code | 180516 |
| Insert Size | 180516 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IN1030 |
| Corner Radius (Decimal Inch) | 0.0620 |
| Insert Hand | Right Hand |
| Series | AOMT18 |
| Coating Process | PVD |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.6600 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Iso Code | AOMT180516R IN1030 |
| Standards | ISO |
| Shape | Parallelogram |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 0.4220 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2190 |
