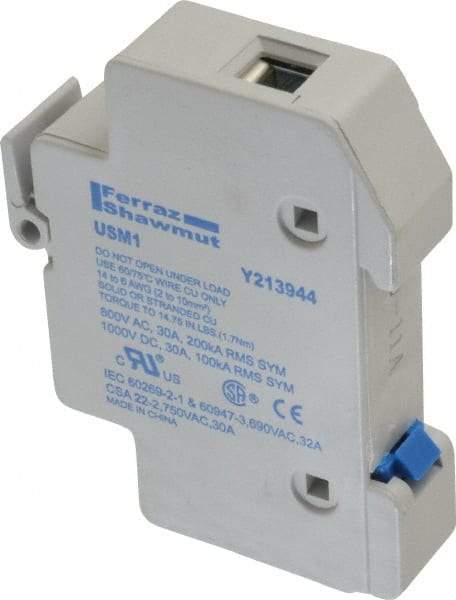

Ferraz Shawmut - 1 Pole, 1000 VDC and 800 VAC, 30 Amp, DIN Rail Mount Fuse Holder - Compatible with CC Class, 1-1/2 Inch Long x 0.69 Inch Wide and 13/32 Inch Diameter Fuse
Item #: 48757066
Brand: Ferraz Shawmut
Model #: USM1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Compatible Fuse Class | CC |
| Number of Poles | 1 |
| Voltage | 1000 VDC; 800 VAC |
| Amperage | 30 |
| Mounting Type | DIN Rail Mount |
| Wire Termination Type | Pressure Plate |
| Compatible Fuse Length (mm) | 38.00 |
| Compatible Fuse Length (Inch) | 1-1/2 |
| Compatible Fuse Diameter (mm) | 10 |
| Compatible Fuse Diameter (Inch) | 13/32 |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -40 |
| Holder Height (mm) | 78 |
| Holder Height (Decimal Inch) | 3.0700 |
| Holder Length (mm) | 59 |
| Holder Length (Decimal Inch) | 2.3200 |
| Holder Width/Diameter (mm) | 17-1/2 |
| Holder Width/Diameter (Decimal Inch) | 0.6900 |
