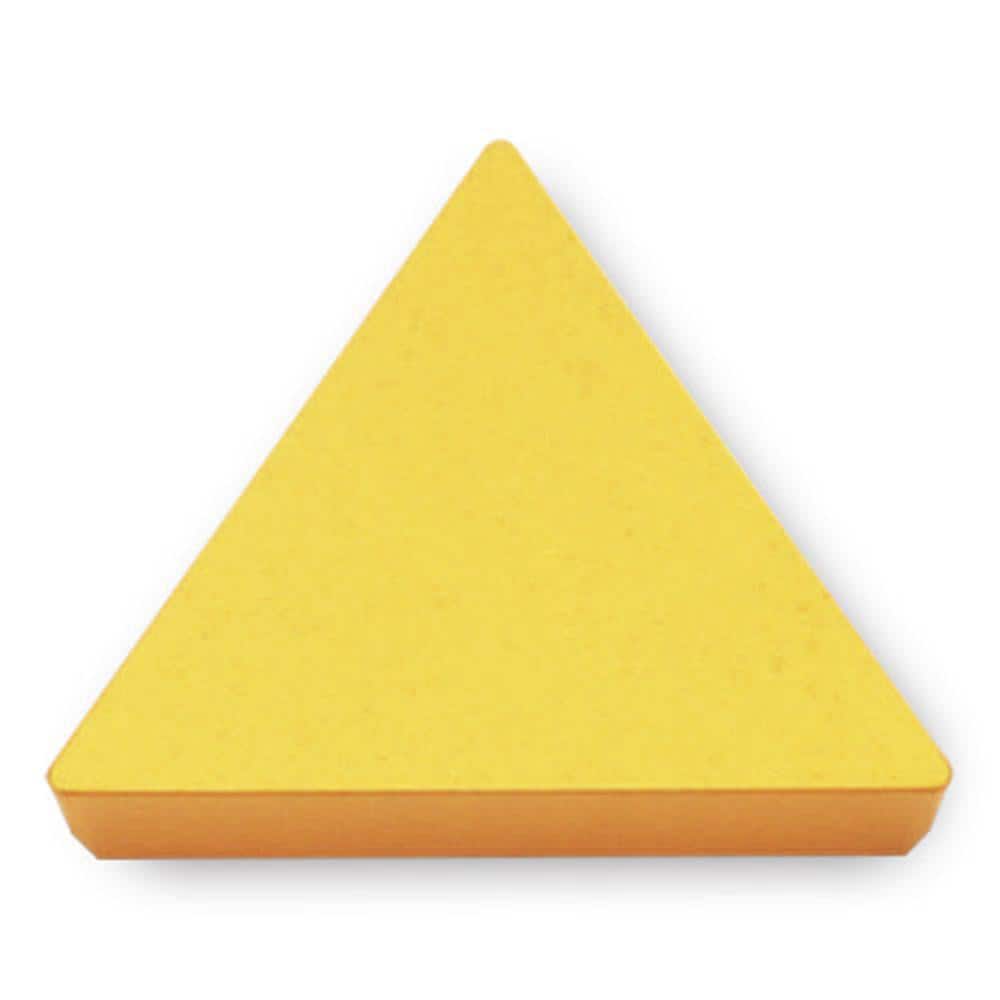

TPUN160308 K10 Carbide Turning Insert 1/8″ Thick, 60° Triangle
Item #: 48551824
Brand: Ingersoll Cutting Tools
Model #: 5501108
Product Specifications
| Insert Style | TPUN |
| Insert Shape Code | T |
| Insert Size Code | 322 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | U |
| Insert Material | Solid Carbide |
| Manufacturer Grade | K10 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPUN |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5710 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; K; N |
| Ansi Code | TPU322K10 |
| Iso Code | TPUN160308 K10 |
| Standards | ISO |
| Chip Breaker | N |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | Uncoated |
