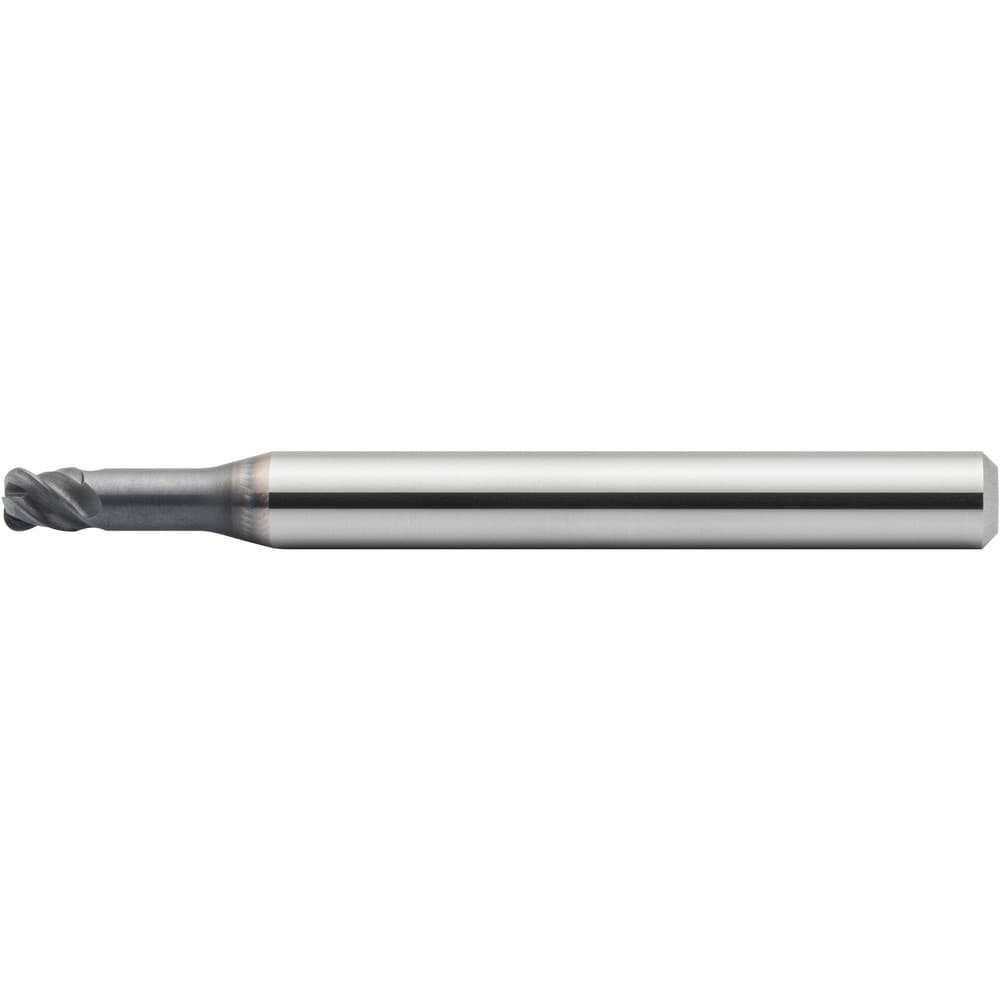

Corner Radius End Mill: 12 mm Dia, 18.00 mm LOC, 2.00 mm Radius, 4 Flute, Solid Carbide
Item #: 85556249
Brand: Mitsubishi
Model #: 568801
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 18.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiSiN |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0787 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 2.00 |
| Overall Length (mm) | 180.00 |
| Coolant Through | No |
| End Type | Corner Radius |
| Length Type | Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 16.00 |
| Neck Diameter (mm) | 11.70 |
| Neck Diameter (Decimal Inch) | 0.4606 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; H |
| Secondary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; M |
| Material Application | Heat-Resistant Alloy; Alloy Steel; Stainless Steel; Cast Iron; Carbon Steel; Steel; Titanium Alloy; Hardened Steel |
| Coating Classification | PVD |
| Country of Origin | Japan |
