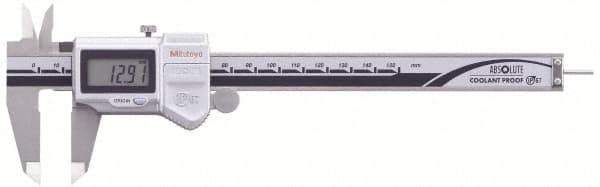

Mitutoyo - 0 to 150mm Range, 0.01mm Resolution, IP67 Electronic Caliper - Stainless Steel with 40mm Stainless Steel Jaws, 0.02mm Accuracy, SPC Output
Item #: 48406375
Brand: Mitutoyo
Model #: 500-769-20
Exact Tooling IR#: 04
Features and Benefits
IP67 ratings offer full protection against dirt and dust. It also offer temporary protection against the effects of immersion in water at depths between 15cm and 1 meter.
| Product Specifications | |
|---|---|
| Minimum Measurement (mm) | 0 |
| Minimum Measurement (Decimal Inch) | 0 |
| Maximum Measurement (Decimal Inch) | 6 |
| Maximum Measurement (mm) | 150 |
| Accuracy Plus/Minus (Decimal Inch) | 0.0010 |
| Accuracy Plus/Minus (mm) | 0.0200 |
| Resolution (Decimal Inch) | 0.0005 |
| Resolution (mm) | 0.0100 |
| IP Rating | IP67 |
| Data Output | SPC |
| Jaw Length (Decimal Inch) | 1.5748 |
| Jaw Length (mm) | 40.00 |
| Includes Inside Diameter Jaws | Yes |
| Offset Jaw | No |
| Application | Depth; Inside Diameter; Outside Diameter; Step |
| Material | Stainless Steel |
| Jaw Material | Stainless Steel |
| Power Source | Battery |
| Battery Type | SR44 |
| Includes Depth Measurement Rod | Yes |
| Includes | Case |
