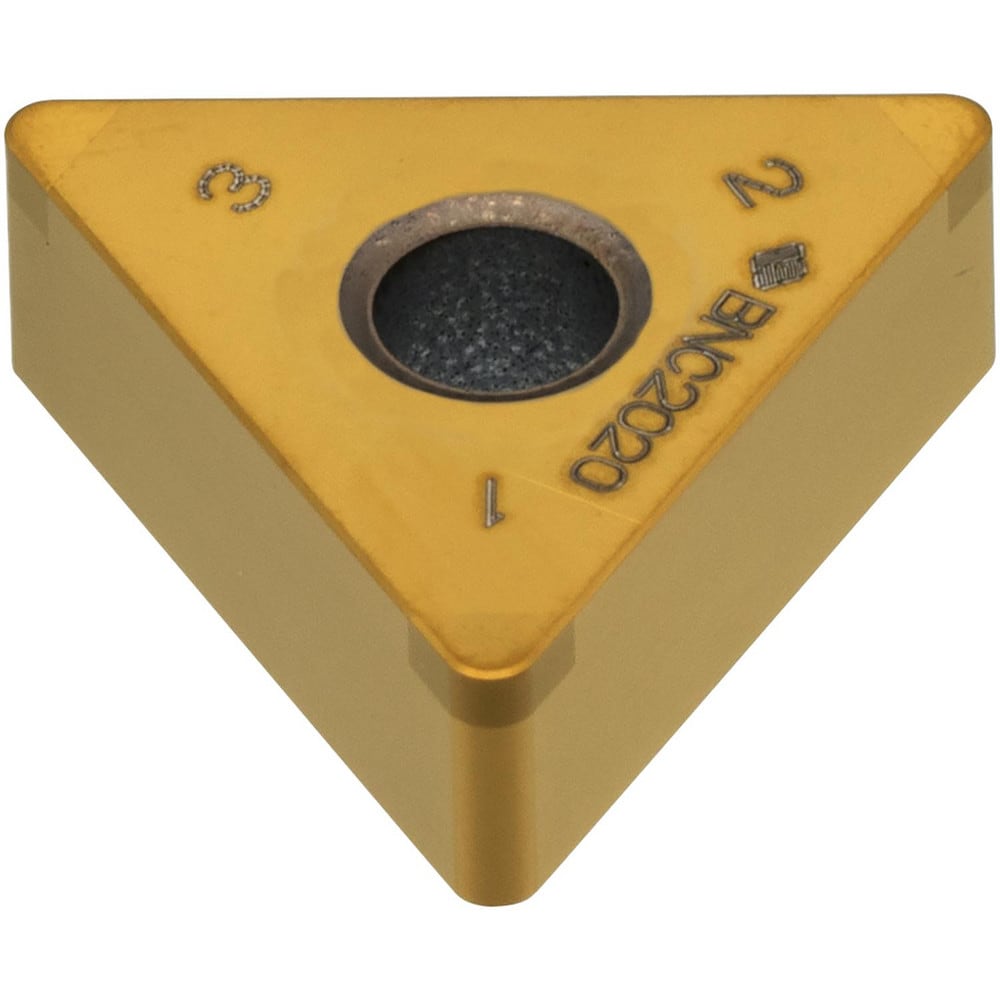

Brand: Sumitomo / Part #: 166QEKA
Item #: 93298552
Brand: Sumitomo
Model #: 166QEKA
Product Specifications
| Insert Style | TNGA |
| Insert Shape Code | T |
| Insert Size Code | 334 |
| Insert Shape | Triangle |
| Coating/Finish | AlCrN; TiCN |
| Manufacturer Grade | BNC2010 |
| Corner Radius (mm) | 1.60 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.8100 |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 9.53 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Clearance Code | N |
| Tolerance Code | G |
| Relief Angle | 0.000 |
| Series | BNC2010 |
| Manufacturers Catalog Number | 3NCTNGA334-BNC2010 |
| Cutting Direction | Neutral |
| Chip Breaker | None |
| Width (Mm - 2 Decimals) | 16.50 |
