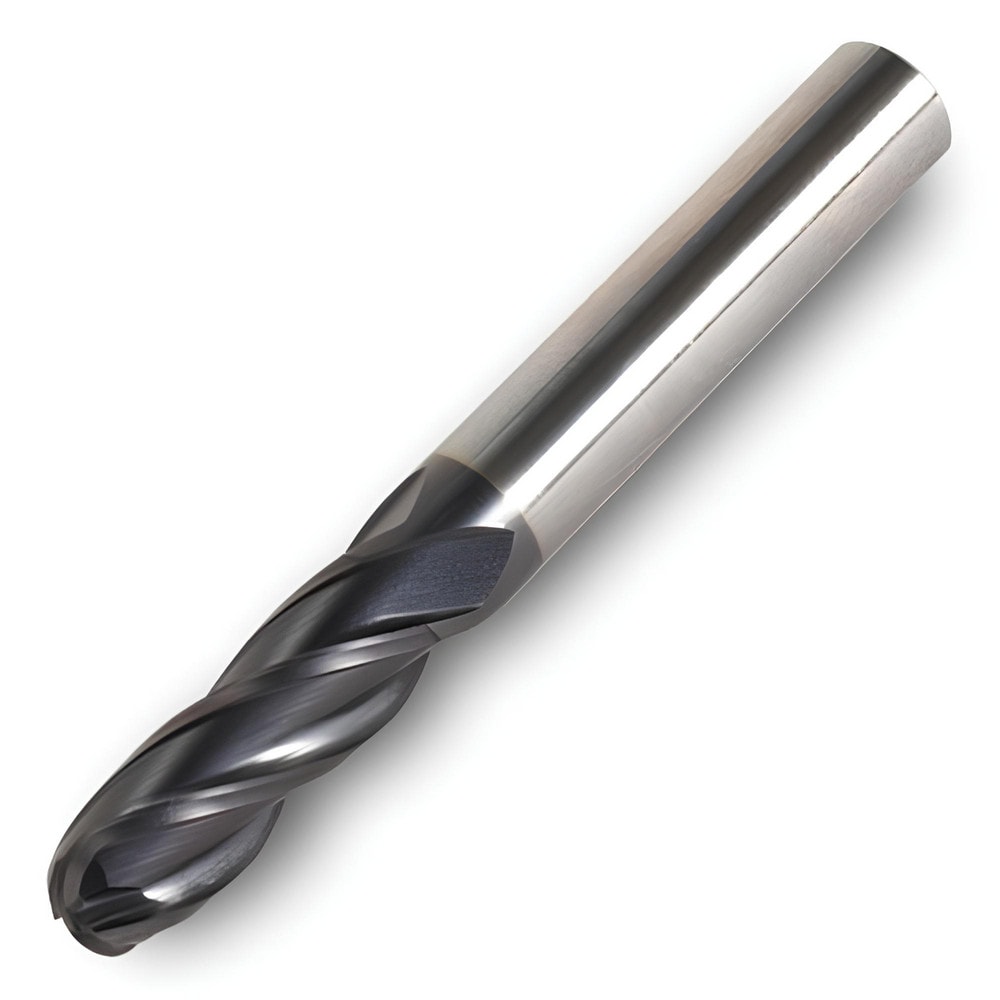

Brand: Ingersoll Cutting Tools / Part #: 2944393
Item #: 94095239
Brand: Ingersoll Cutting Tools
Model #: 2944393
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Length of Cut (mm) | 20.0000 |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Chipbreaker | No |
| Number Of Flutes | 4 |
| End Type | Single |
| Extended Reach | No |
| Undercutting | No |
| Length Type | Extra Long |
| Helix Style | High |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Neck Diameter (mm) | 10.000 |
| Nose Radius (mm) | 5.00 |
| Neck Length (mm) | 10.00 |
| Overall Length (mm) | 72.0000 |
| Maximum Helix Angle | 38 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; H; N |
| Material Grade | IN2003 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 47BRQ |
| Flute Type | Fast |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7874 |
