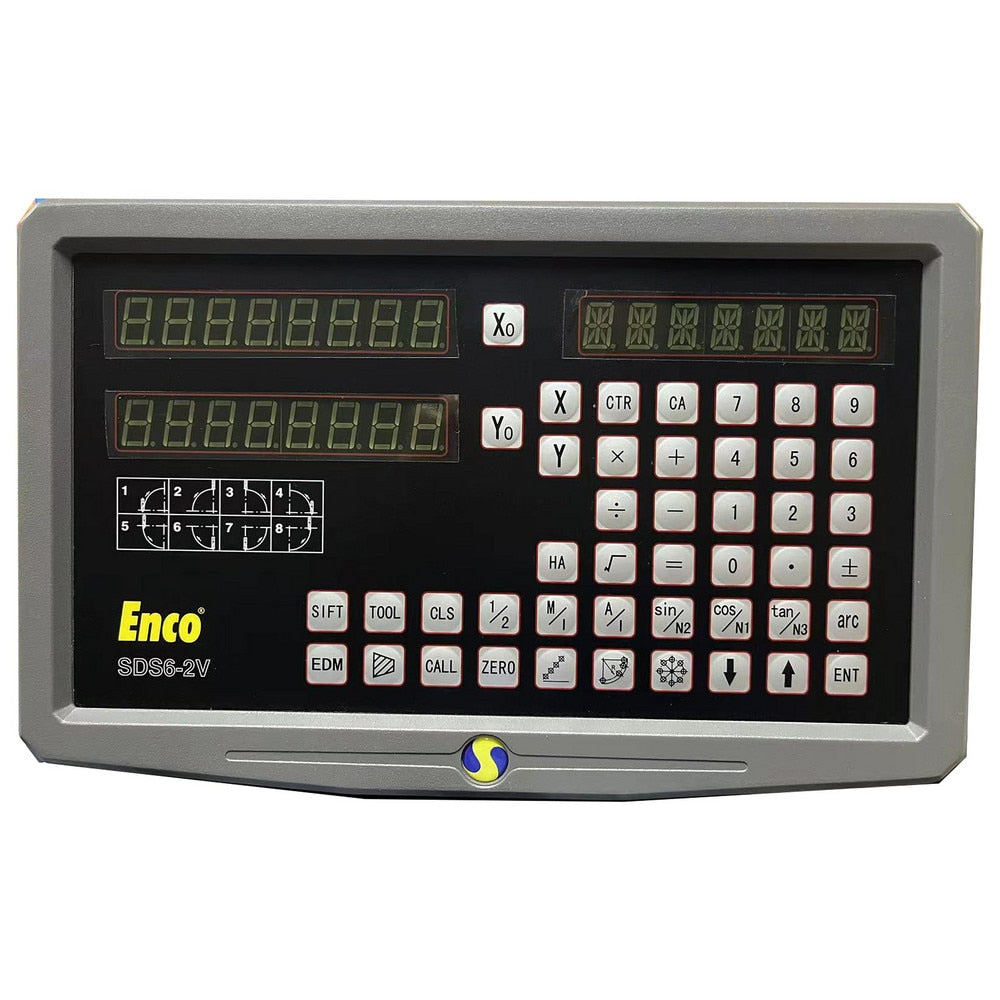

DRO Systems; Machine Compatibility: Lathe; Calculator Function: Yes; Programmable Memory: Yes; Tool Offsets: 200; Scale Type: Linear Scale, Glass
Item #: 04732582
Brand: Enco
Model #: 8X40XSDS6-2V
Product Specifications
| Machine Compatibility | Lathe |
| Calculator Function | Yes |
| Programmable Memory | Yes |
| Tool Offsets | 200 |
| Scale Type | Linear Scale; Glass |
| Accuracy (micrometer) | ±25?m for Z Axis; ±8?m for X Axis |
| Display Type | LED |
| Resolution (mm) | 0.0050 (5 µm Scales) |
| Resolution (micrometer) | 5.00 |
| Color Display | No |
| Includes | LED Readout; Mounting Hardware; Armored Cables; Installation Instruction; (2) Precision Scales w/ protection cover |
| Display Size (Decimal Inch) | 7.0000 |
| Number Of Axes | 2 |
| Y Axis Travel Length (Decimal Inch) | 0.0000 |
| X Axis Travel Length (Decimal Inch) | 8.0000 |
| Z Axis Travel Length (Decimal Inch) | 40.0000 |
| For Use With | MSC #84478361 |
| UNSPSC Code | 41111900 |
