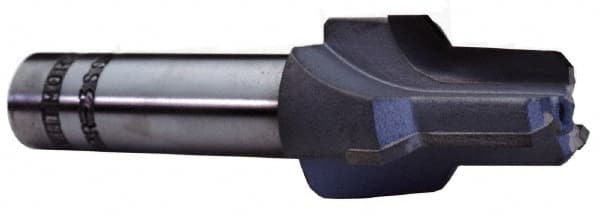

Scientific Cutting Tools - M42x2.0mm Port, 2.0512" Spotface Diam, Reamer Pilot, Carbide Tipped Porting Tool
Item #: 06606867
Brand: Scientific Cutting Tools
Model #: 6149-M42X2.0
Features and Benefits
Carbide-tipped cuts faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
| Product Specifications | |
|---|---|
| Port Standard Designation | ISO 6149-1; SAE J2244-1 |
| Pilot Type | Reamer |
| Port Thread Size (mm) | M42x2.0 |
| Tool Material | Carbide-Tipped |
| Minimum Pilot Diameter (mm) | 40.000 |
| Minimum Pilot Diameter (Decimal Inch) | 1.5748 |
| Maximum Pilot Diameter (Decimal Inch) | 1.7500 |
| Spotface Diameter (Decimal Inch) | 2.0512 |
| Spotface Diameter (mm) | 52.10 |
| Pilot Length (Decimal Inch) | 0.7598 |
| Identification Groove | No |
| Finish/Coating | Bright |
| Head Length (Decimal Inch) | 2.1000 |
| Overall Length (Decimal Inch) | 4.3500 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 2.2500 |
| Seal Angle | 15 |
| Thread Type | Metric Fine |
| Flute Type | Straight |
| Number of Flutes | 4 |
