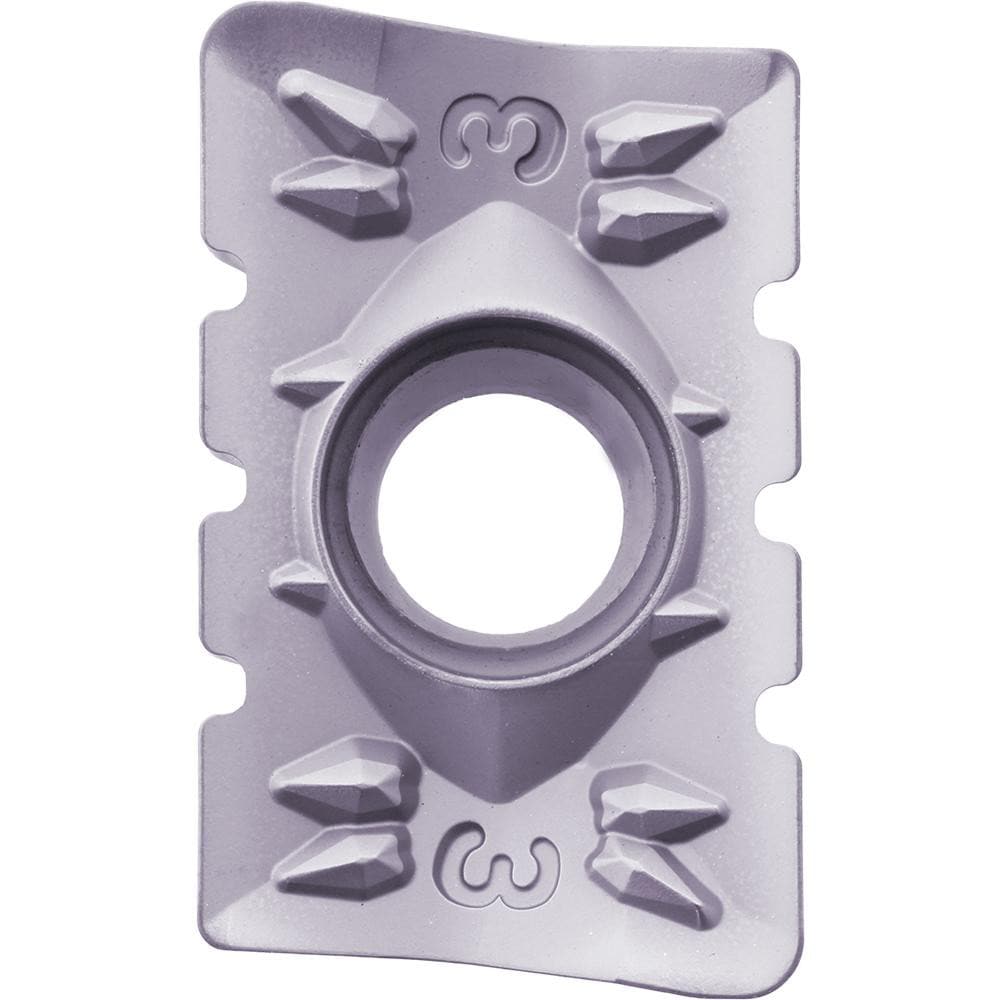

Milling Insert: APMT250608ER-NB3 PR1810, Carbide
Item #: 86782737
Brand: Kyocera
Model #: TLS00136
Product Specifications
| Insert Style | APMT |
| Insert Size | 250608 |
| Insert Material | Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | PR1810 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Thickness (mm) | 6.3500 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 15.000 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | MSR Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.5000 |
| Hole Diameter (Decimal Inch) | 0.2559 |
| Cutting Edge Effective Length (mm) | 25.00 |
| Cutting Edge Effective Length (Decimal Inch) | 0.9843 |
| Rake | Positive |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | APMT250608ERNB3PR1810 |
| Iso Code | APMT250608ER-NB3 |
| Manufacturers Catalog Number | APMT250608ERNB3PR1810 |
| Chip Breaker | ER-NB3 |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Width (mm - 2 Decimals) | 15.88 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
