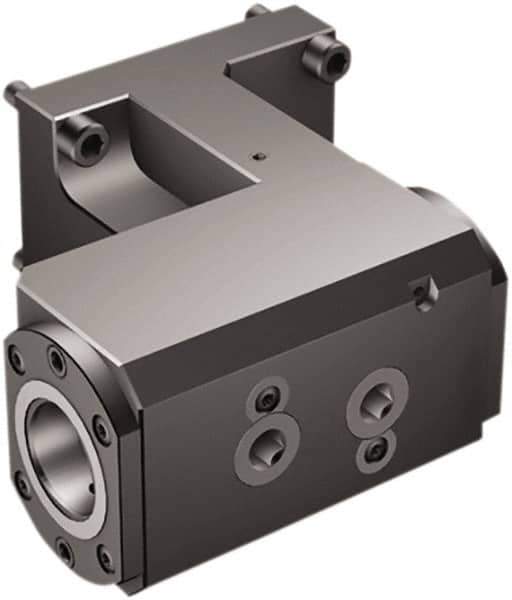

Sandvik Coromant - Right Hand Cut, C4 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 40mm Square Shank Diam, 4.882" OAL, Through Coolant
Item #: 47195672
Brand: Sandvik Coromant
Model #: 6144263
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Connection Size | C4 |
| Cutting Direction | Right Hand |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Through Coolant | Yes |
| Head Height (mm) | 78.00 |
| Head Height (Decimal Inch) | 3.0709 |
| Overall Length (mm) | 124.00 |
| Overall Length (Decimal Inch) | 4.8819 |
| Shank Length (mm) | 15.00 |
| Shank Length (Decimal Inch) | 0.5906 |
