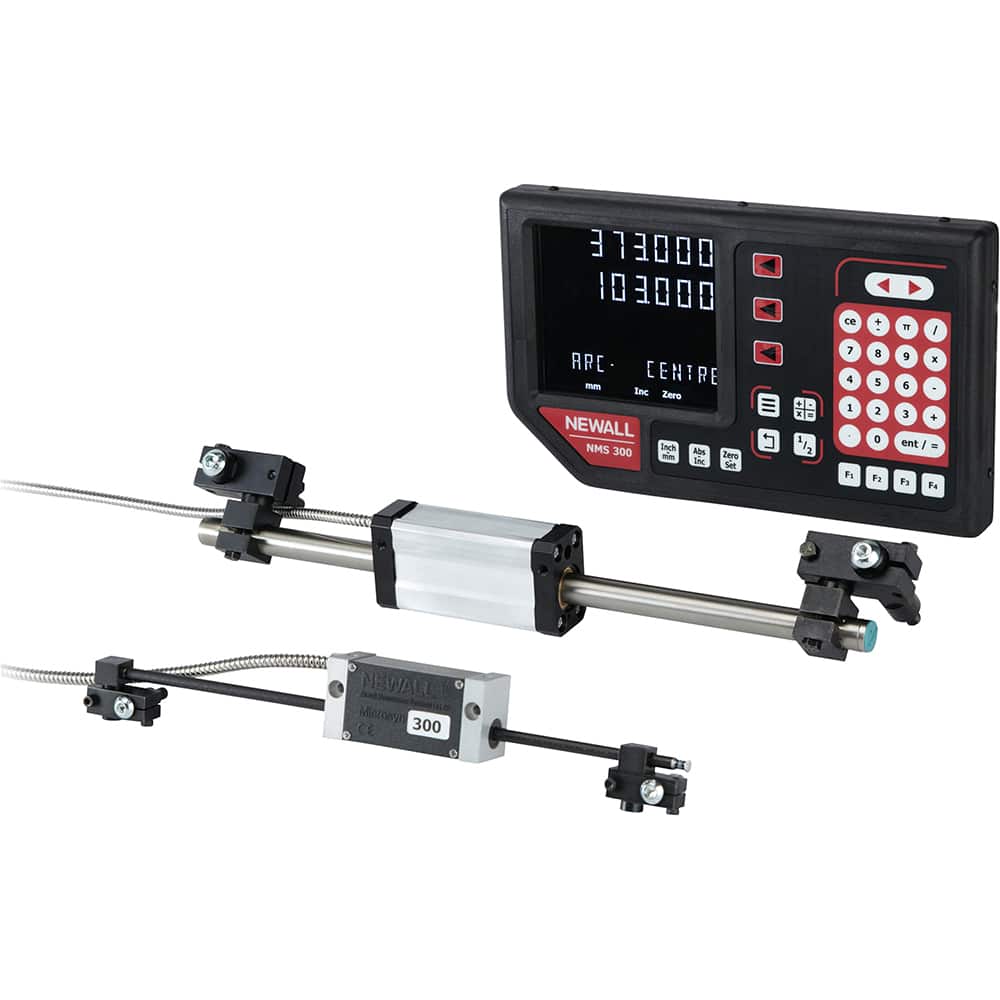

Drilling & Milling DRO System: 3 Axis, 8″ X-Axis Travel, 18″ Y-Axis Travel Calculator Function, Programmable Memory, 5 µm Resolution, Color LCD Display
Item #: 46628509
Brand: Newall
Model #: N30081804D7011
Product Specifications
| Machine Compatibility | Drilling; Milling |
| Calculator Function | Yes |
| Programmable Memory | Yes |
| X-axis Travel | 8 in |
| Y-axis Travel | 18 in |
| Z-axis Travel | 4 in |
| Tool Offsets | 50 |
| Scale Type | Inductive |
| Accuracy (micrometer) | ?10 |
| Accuracy (Decimal Inch) | 0.0004 |
| Display Type | Color LCD |
| Resolution (Decimal Inch) | 0.000200 |
| Resolution (micrometer) | 5.00 |
| Color Display | Yes |
| Includes | Display Mounting Arm; NMS300 DRO; Brackets for Scales; Mounting Hardware; Reader Head Mounting Brackets |
| Display Size (Decimal Inch) | 10.6300 |
| Number Of Axes | 3 |
| Y Axis Travel Length (Decimal Inch) | 18 |
| X Axis Travel Length (Decimal Inch) | 8 |
| Z Axis Travel Length (Decimal Inch) | 4 |
