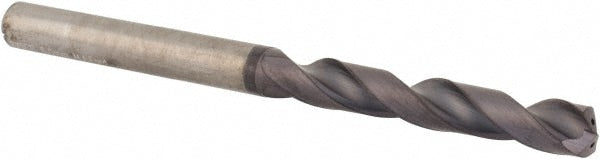

Jobber Drill: 6.00 mm Dia, 142 deg Point, Solid Carbide
Item #: 87137220
Brand: M.A. Ford
Model #: 2XDCR2362A
Product Specifications
| Drill Bit Size (mm) | 6.00 |
| Drill Bit Size (Decimal Inch) | 0.2362 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 142 |
| Coating/Finish | AlTiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | S; H; M |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 82.00 |
| Overall Length (Decimal Inch) | 3.2283 |
| Spiral Type | Regular |
| Flute Length (mm) | 40.00 |
| Flute Length (Decimal Inch) | 1.5748 |
| Proprietary Coating/Finish | ALtima |
| Series | 2XDCR |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6 |
| Maximum Drilling Depth (mm) | 32.00 |
| Drill Point Length (mm) | 0.93 |
| Drill Bit Diameter Tolerance | +0.00000 to -0.00047 in; +0.000 to -0.008 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | DIN 6537 K; ISO 9001:2015 Certified |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Drill Bit Size Range (mm) | 6.00 - 7.00 |
| UNSPSC Code | 23241634 |
| Country of Origin | UNITED STATES |
