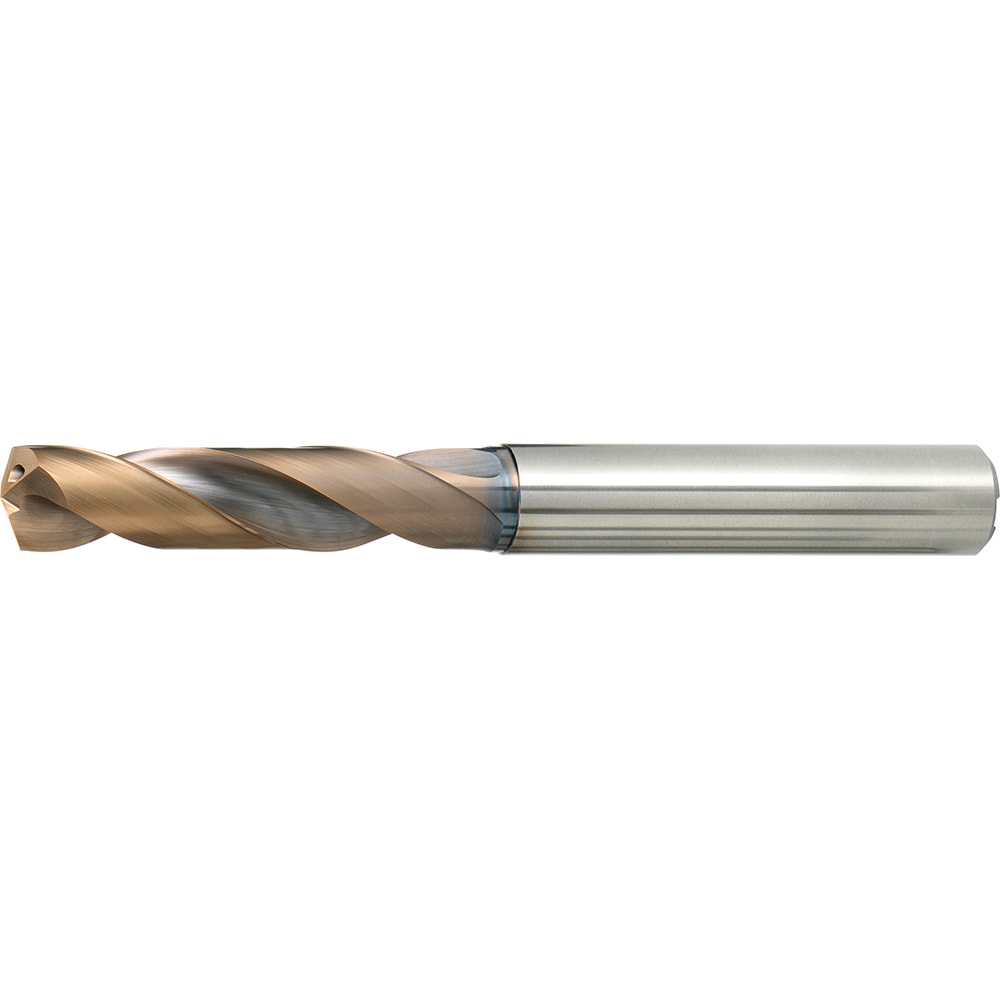

Jobber Drill: 11/32" Dia, 140 deg Point, Solid Carbide
Item #: 11442142
Brand: Mitsubishi
Model #: 10604786
Product Specifications
| Drill Bit Size (Inch) | 11/32 |
| Drill Bit Size (mm) | 8.73 |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlN |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Point Type | X-Thinned |
| Primary Workpiece Material | High-Temp Alloy |
| Coolant Through | Yes |
| Primary Workpiece Material Code | S |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 102.60 |
| Overall Length (Decimal Inch) | 4.0394 |
| Flute Length (mm) | 46.60 |
| Flute Length (Decimal Inch) | 1.8346 |
| Series | DSAS |
| Tool Application | Drilling; Holemaking |
| Flute By Diameter Ratio | 3xD |
| Shank Diameter (mm) | 10 |
| Maximum Drilling Depth (Decimal Inch) | 1.0945 |
| Maximum Drilling Depth (mm) | 27.80 |
| Shank Length (mm) | 54 |
| Shank Length (Decimal Inch) | 2.1260 |
| Drill Point Length (mm) | 1.60 |
| Drill Point Length (Decimal Inch) | 0.0630 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Shank Type | Straight |
| Drill Bit Grade | High Precision; High Performance |
| Specification Designation | ISO |
| UNSPSC Code | 23241634 |
