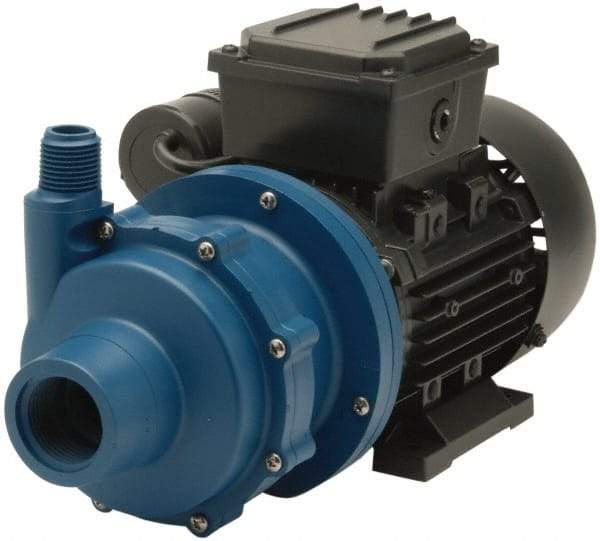

Finish Thompson - Permanent Split Cap Motor, 115 Volt, 1.55 Amp, 1 Phase, 1/8 HP, 3500 RPM, Glass Filled Polypropylene Straight Pump - 1 Inch Inlet, 1/2 Inch Outlet, 8.7 Max Head psi, Glass Filled Polypropylene Impeller, Ceramic Shaft, FKM Seal
Item #: 45855855
Brand: Finish Thompson
Model #: DB3P-M612
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Current Type | AC |
| Input Voltage | 115 |
| Amperage Rating | 1.55 |
| Phase | 1 |
| Horsepower | 1/8 |
| Motor Type | Permanent Split Cap |
| Inlet Size (Inch) | 1 |
| Outlet Size (Inch) | 1/2 |
| Maximum Flow Rate (GPM) | 15.00 |
| Maximum Head Pressure | 8.7 |
| Housing Material | Glass Filled Polypropylene |
| Impeller Material | Glass Filled Polypropylene |
| Shaft Material | Ceramic |
| Seal Material | FKM |
| Seal Type | O-Ring |
| GPM @ 5 Feet of Head | 14 |
| GPM @ 10 Feet of Head | 12.000 |
| GPM @ 15 Feet of Head | 8.5 |
| GPM @ 20 Feet of Head | 3.500 |
| Frequency Hz | 60 |
| Thermal Overload Protection | No |
| RPM | 3500.000 |
| End Connections | Conduit Box |
