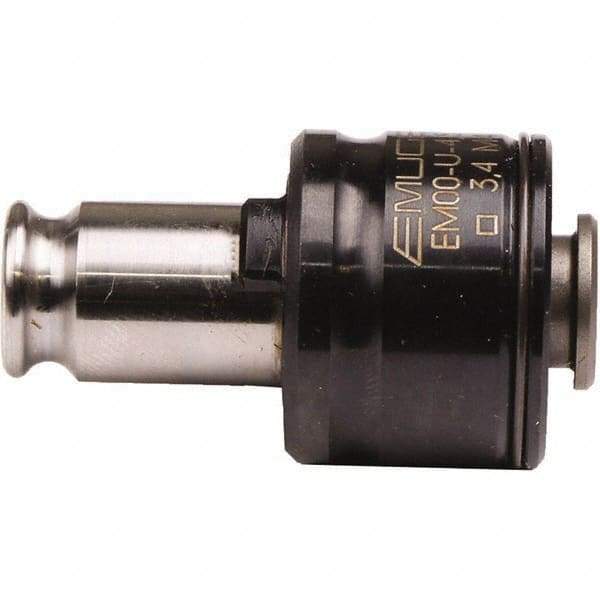

Emuge - 0.1378" Tap Shank Diam, 0.1063" Tap Square Size, #0 Tapping Adapter - 0.8661" Projection, 0.8661" Tap Depth, 1.6339" OAL, 0.5118" Shank OD, Through Coolant, Series EM00-U
Item #: 45766656
Brand: Emuge
Model #: F0570102.1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Adapter Size | 0 |
| Tap Shank Diameter (mm) | 3.50 |
| Tap Shank Diameter (Decimal Inch) | 0.1378 |
| Tap Square Size (mm) | 2.70 |
| Tap Square Size (Decimal Inch) | 0.1063 |
| Quick Change | Yes |
| Projection (mm) | 22.00 |
| Projection (Decimal Inch) | 0.8661 |
| Tap Depth (mm) | 22.00 |
| Tap Depth (Decimal Inch) | 0.8661 |
| Series | EM00-U |
| Overall Length (mm) | 41.50 |
| Overall Length (Decimal Inch) | 1.6339 |
| Flange Diameter (mm) | 24.00 |
| Flange Diameter (Decimal Inch) | 0.9449 |
| Outside Shank Diameter (mm) | 13.00 |
| Outside Shank Diameter (Decimal Inch) | 0.5118 |
| Through Coolant | Yes |
| PSC Code | 5136 |
