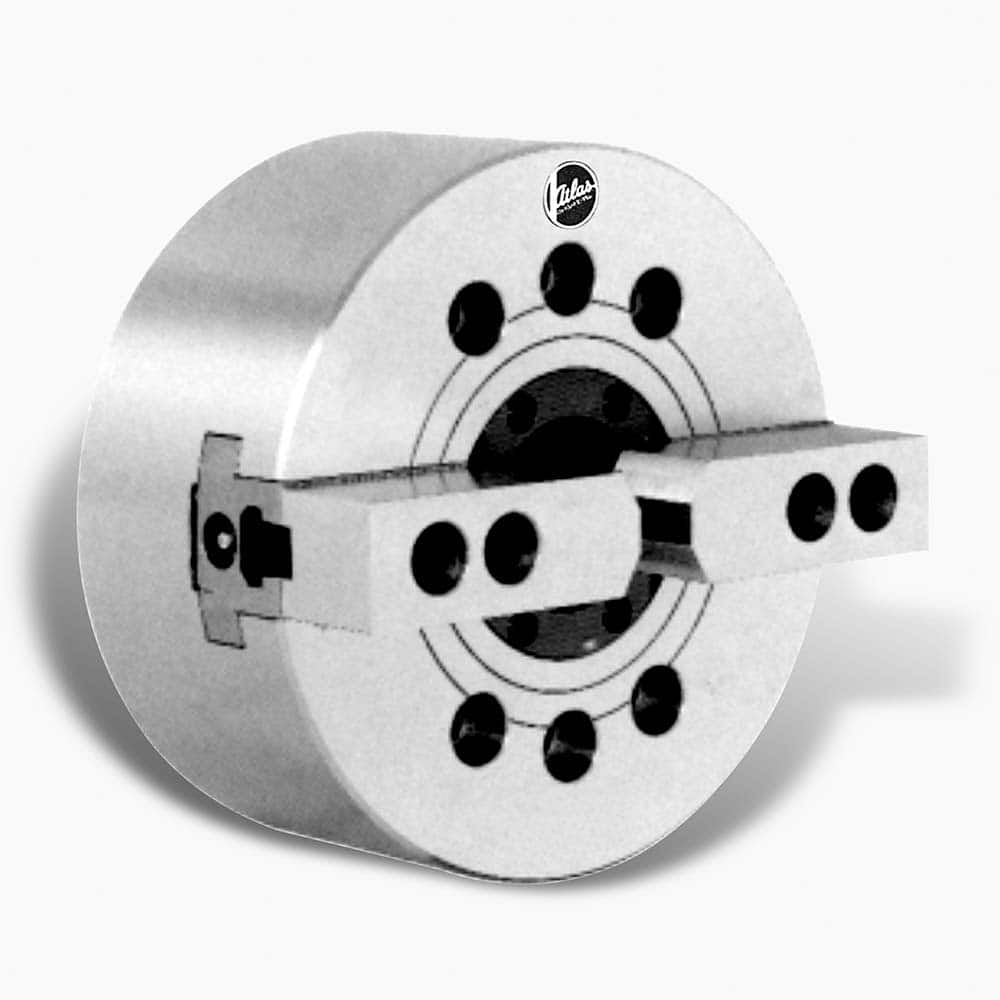

Atlas Workholding - 2 Jaw 10" Diam A2-6 Lathe Chuck
Item #: 45492469
Brand: Atlas Workholding
Model #: HST10-A6
Product Specifications
| Chuck Diameter (Decimal Inch) | 10.0000 |
| Number of Jaws | 2 |
| Mount | A2-6 |
| Through-Hole Diameter (Decimal Inch) | 2.9520 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 1.2200 |
| Maximum Jaw Capacity (Decimal Inch) | 10.0000 |
| Jaw Stroke Diameter (Decimal Inch) | 0.3460 |
| Piston Stroke Length (Decimal Inch) | 0.7480 |
| Maximum Drawbar Pulling Force (lbf) | 9667.00 |
| Maximum Static Gripping Force (lbf) | 24953.00 |
| Maximum RPM | 4200 |
| Body Material | Steel |
