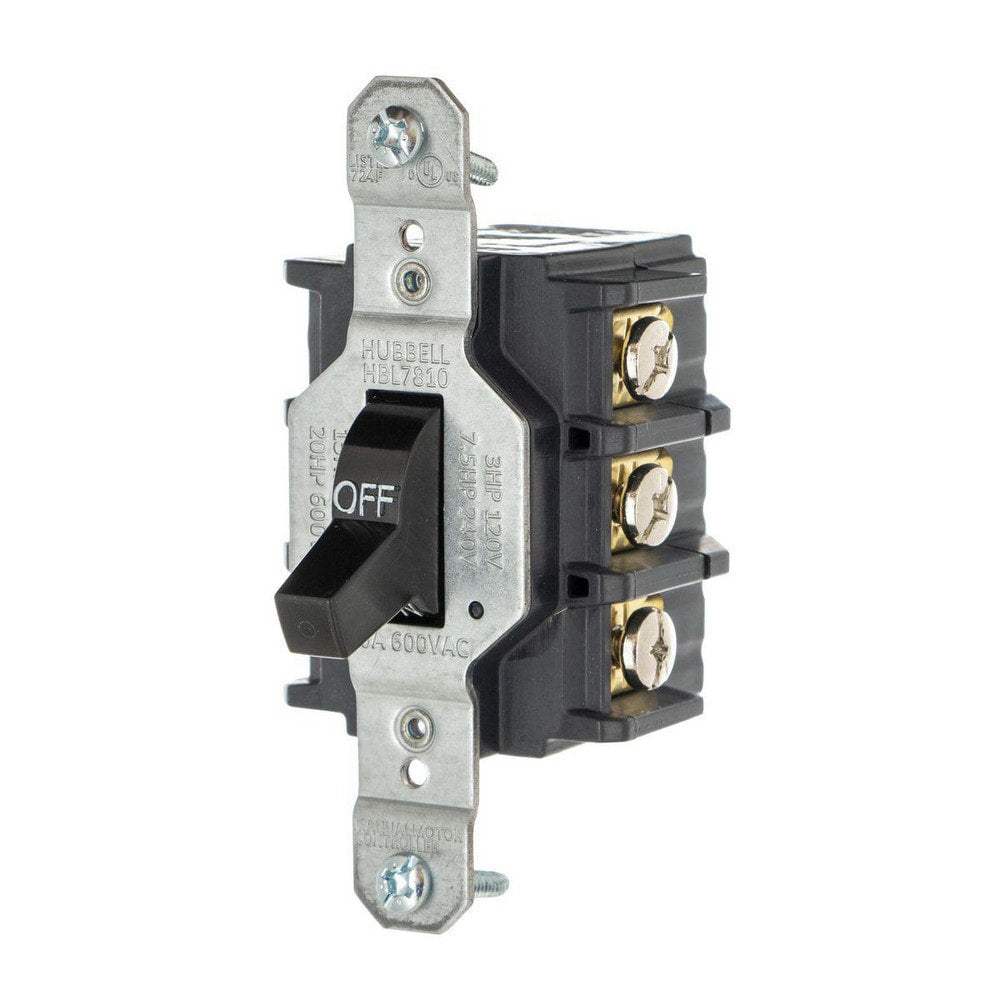

Circuit-Lock Manual Short Toggle Controller/Motor Disconnect Switch, 3-pole 30A
Item #: 06937700
Brand: Hubbell Wiring Device-Kellems
Model #: HBL7810S
Product Specifications
| Enclosure Type | Open |
| Fused | Non-Fused |
| Amperage | 30 mA |
| Voltage | 600V AC |
| Horsepower at 1 Phase | 3 @ 120 VAC |
| Horsepower at 3 Phase | 7.5 @ 240 VAC/15 @ 480 VAC/20 @ 600 VAC |
| Contact Form | 3PST |
| Number Of Poles | 3 |
| Overall Height (Decimal Inch) | 2.2100 |
| Overall Width (Decimal Inch - 4 Decimals) | 2.25 |
| Overall Depth (Decimal Inch) | 3.78 |
| Number Of Wires | 1 |
| Material | Thermoset |
| Standards | CSA-C22.2 No.14; UL 508 |
| Nema Rating | 1 |
| Number Of Phases | 1 |
| UNSPSC Code | 39122205 |
