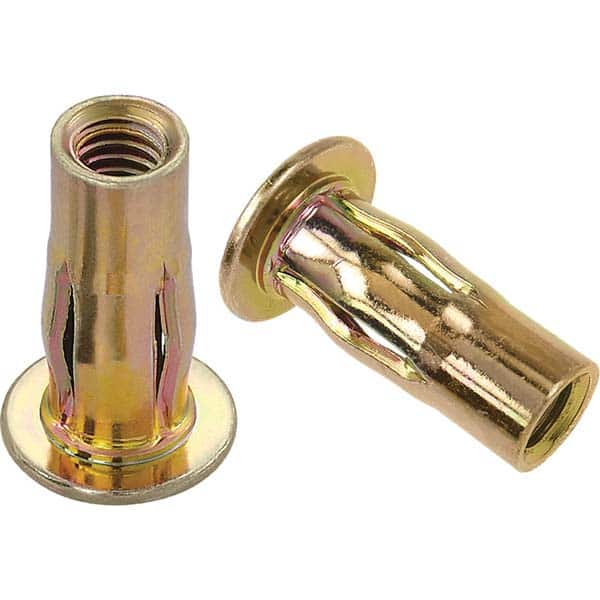

Rivet Nuts; Nut Type: Open End; Material: Steel; Head Type: Flange; Minimum Grip: 0.02 in; Drill Size (Inch): 0.297; Maximum Grip: 0.28 in; Finish: Zinc Plated; Thread Size: 15/16-18; Minimum Grip (Decimal Inch): 0.0200; Maximum Grip (Decimal Inch): 0.280
Item #: 45078722
Brand: Marson
Model #: M27160
Product Specifications
| Nut Type | Open End |
| Material | Steel |
| Head Type | Flange |
| Minimum Grip | 0.02 in |
| Drill Size (Inch) | 0.297 |
| Maximum Grip | 0.28 in |
| Finish | Zinc Plated |
| Thread Size | 15/16-18 |
| Minimum Grip (Decimal Inch) | 0.0200 |
| Maximum Grip (Decimal Inch) | 0.2800 |
| Body Length | 1.113 in |
| Drill Size | 0.297 in |
| Flange Thickness | 0.057 in |
| Body Length (Decimal Inch) | 1.1130 |
| Body Diameter (Decimal Inch) | 0.495 in |
| Flange Diameter (Decimal Inch) | 0.74 in |
| Flange Thickness (Decimal Inch) | 0.0570 |
| Finish/Coating | Zinc Plated |
