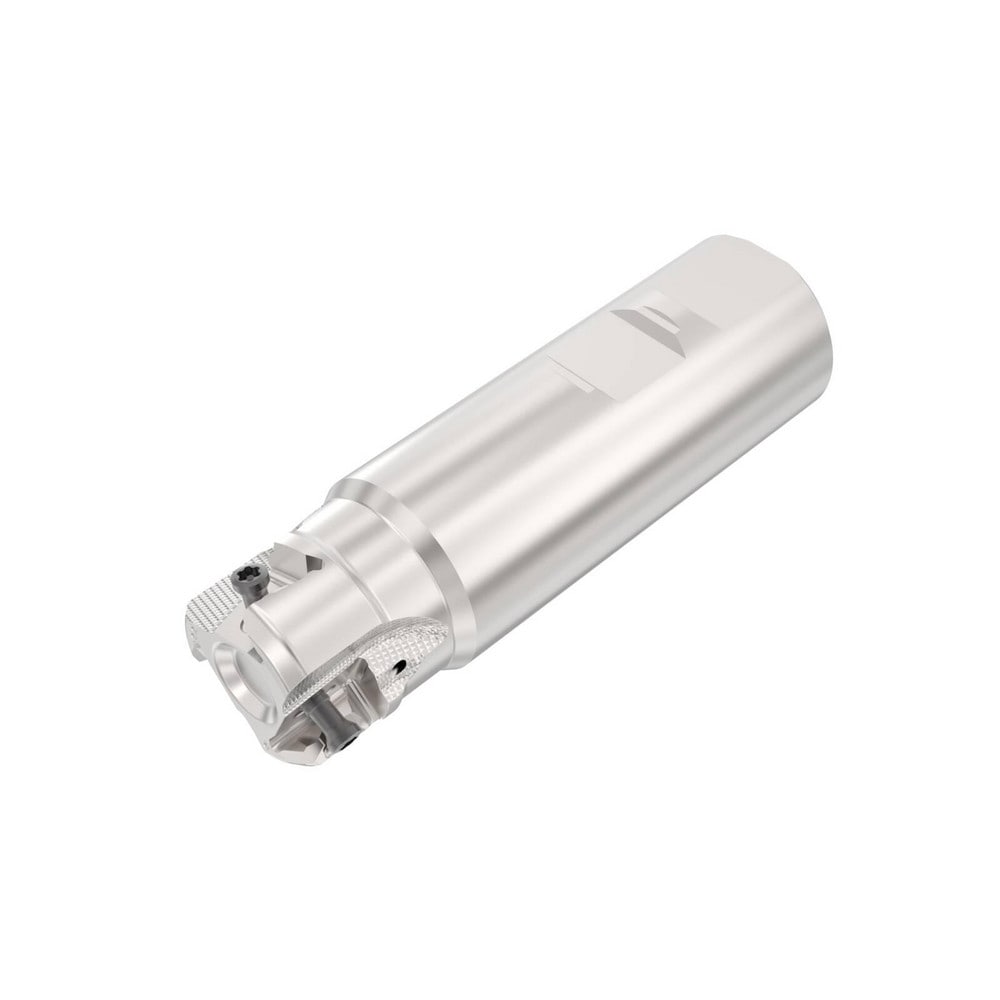

Indexable Square-Shoulder End Mill: R217.943232.3LO123A, Weldon Flat Shank
Item #: 86508892
Brand: Seco
Model #: 10207963
Product Specifications
| Cutting Diameter (mm) | 32.00 |
| Overall Length (mm) | 110.00 |
| Maximum Depth of Cut (mm) | 12.00 |
| Cutter Style | R217.94 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 32.0000 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | R217.94-12 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (mm) | 80.000 |
| Head Length (mm) | 74.50 |
| Maximum RPM | 12400.000 |
| Tool Application | Slotting; Shouldering |
| Tool Performance | General Purpose |
| Standards | ISO; ANSI |
| Rake | Negative |
| Complete Insert Compatibility | LOEX1207 |
| Insert Compatibility | LOEX1207 |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | R217.94-3232.3-LO12-3A |
| Manufacturers Catalog Number | 10207963 |
| Usable Length (mm) | 74.500 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | France |
