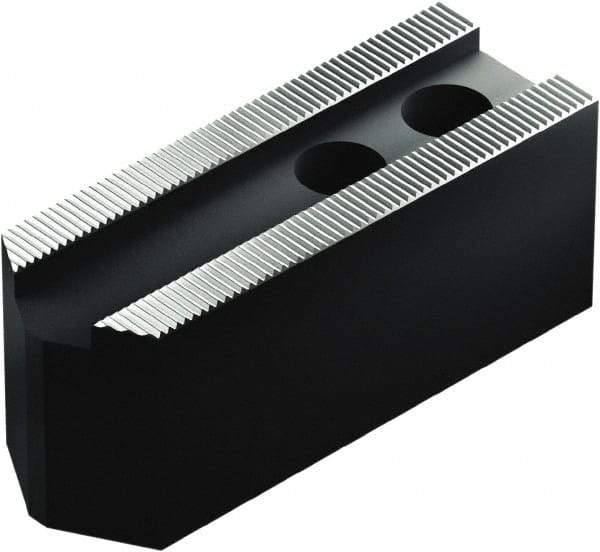

Schunk - 6" Max Chuck Capacity, 1.5mm x 60° Serrated Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 20mm Btw Mount Hole Ctrs, 82mm Long, 35mm Wide, 60mm High, 12mm Groove, M10mm Fastener
Item #: 44459311
Brand: Schunk
Model #: 132606
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 6 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 6.0000 |
| Maximum Compatible Chuck Diameter (mm) | 165.00 |
| Minimum Compatible Chuck Diameter (mm) | 165.00 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 6.0000 |
| Minimum Compatible Chuck Diameter (Inch) | 6 |
| Overall Height (mm) | 60.00 |
| Overall Height (Decimal Inch) | 2.3622 |
| Groove Width (mm) | 12.00 |
| Groove Width (Decimal Inch) | 0.4724 |
| Distance Between Mount Hole Centers (mm) | 20.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.7874 |
| Tongue Width (Decimal Inch) | 0.0000 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | M10 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 35.00 |
| Overall Length (mm) | 82.00 |
