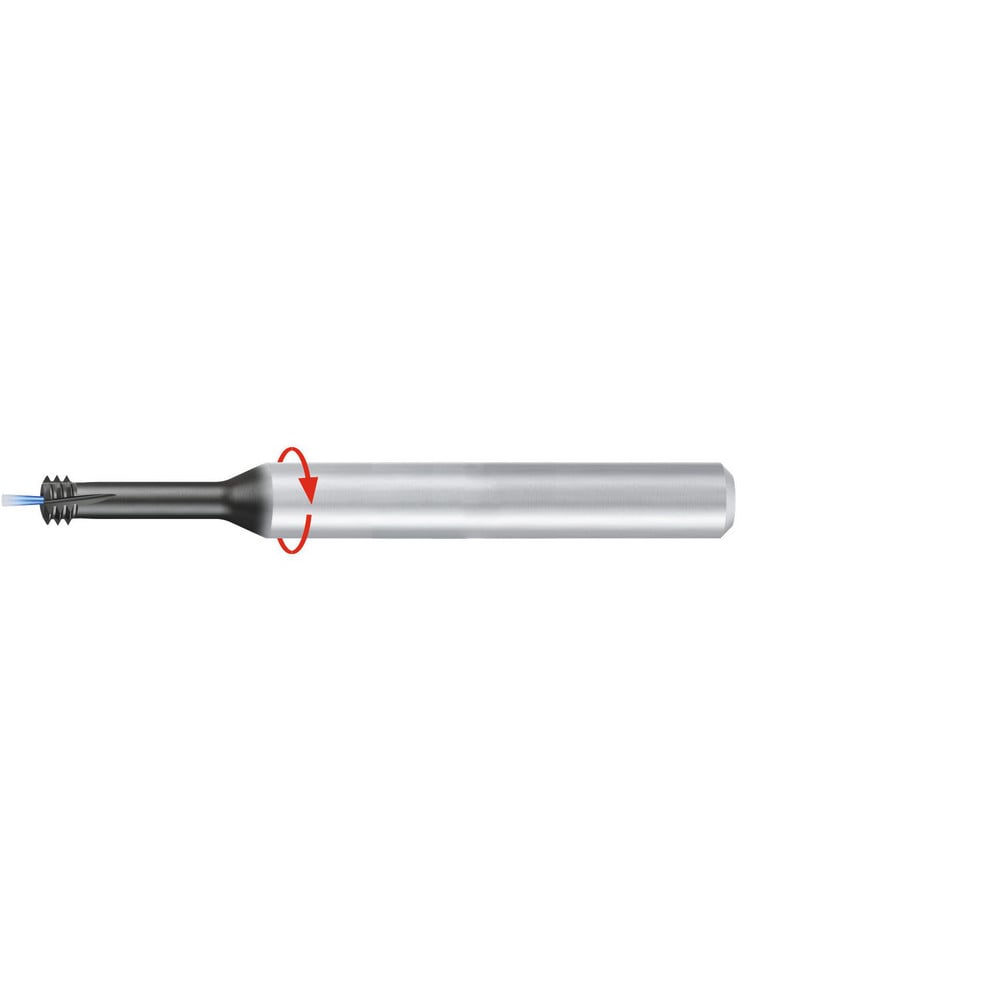

Brand: Emuge / Part #: GF26A729.5711
Item #: 23082548
Brand: Emuge
Model #: GF26A729.5711
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | #10-32 |
| Thread Depth (mm) | 10.80 |
| Thread Depth | 0.3980 |
| Thread Type | Left Hand |
| Shank Diameter (mm) | 4.0000 |
| Cutting Diameter (mm) | 3.90 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.1535 |
| Length of Cut (mm) | 3.1000 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1593 |
| Minimum Nominal Diameter (Inch) | #10 |
| Minimum Nominal Diameter (mm) | 0.00 |
| Shank Length (mm) | 28.000 |
| Overall Length (mm) | 42.0000 |
| Thread Standard | UNF |
| Flute Direction | Left Hand |
| Material Grade | Ultra Fine Grain |
| Series | GF26A |
| Number Of Flutes | 5 |
| Coating/Finish | TiALN |
| Coolant Through | No |
| Thread Direction | Left Hand/Right Hand |
| Teeth Per Inch | 32 |
