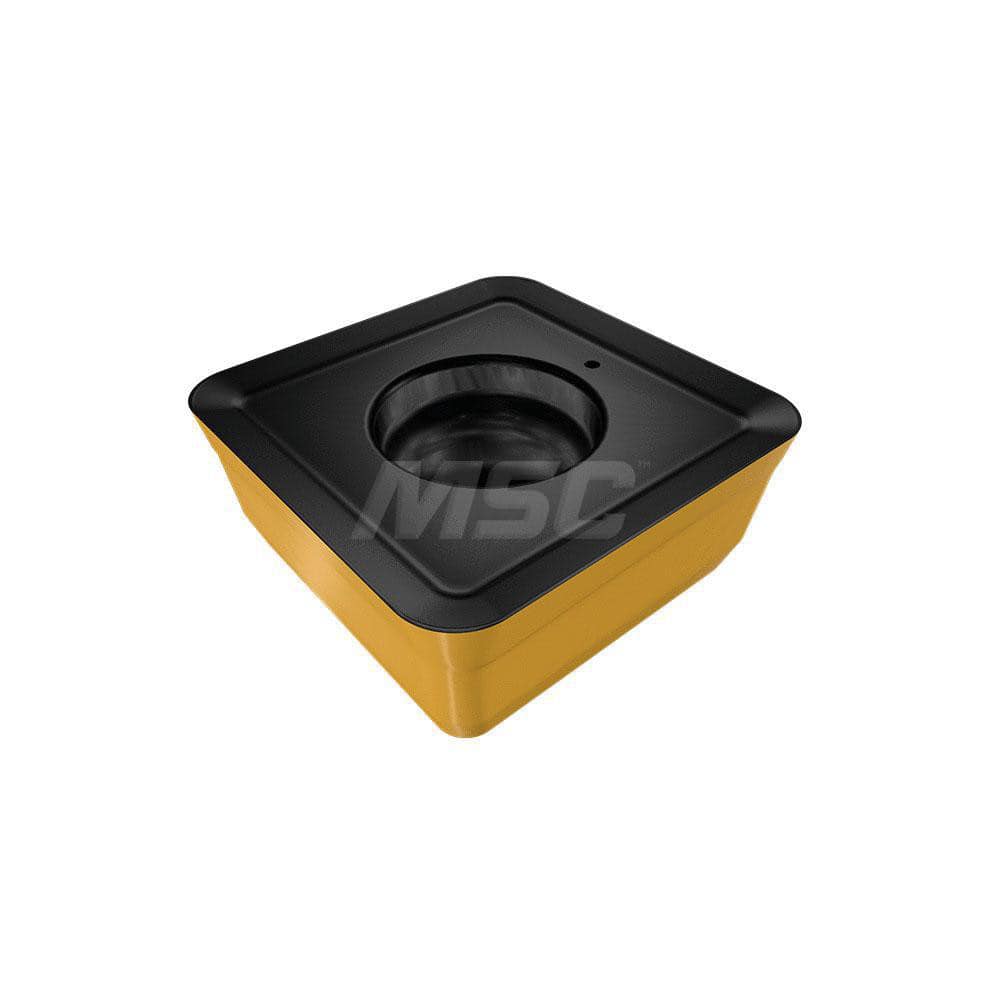

FFQ4 SOMT120516T IC830 Carbide Milling Insert TiAlN/AlTiN/TiN Finish, 12.7mm Long x 5.2mm Thick
Item #: 44254001
Brand: Iscar
Model #: 3311927
Product Specifications
| Insert Style | SOMT |
| Insert Size Code | 120516 |
| Insert Size | 120516 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | IC830 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Decimal Inch) | 0.0629 |
| Corner Radius (mm) | 1.60 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Series | MILL4FEED |
| Coating Process | PVD |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Iso Code | FFQ4 SOMT 120516T |
| Standards | ISO 13399 |
| Cutter Series Compatibility | SOMT |
| Chip Breaker | T |
| Thickness (mm) | 5.20 |
| Coating/Finish | Coated |
| Length | 12.70 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (Mm - 2 Decimals) | 12.70 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2047 |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
