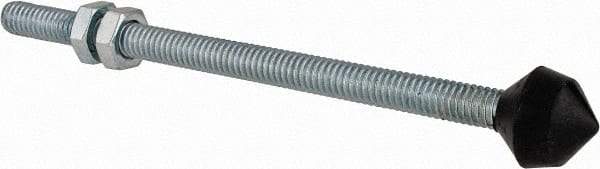

De-Sta-Co - 5/16-18 Carbon Steel Cap Tip Clamp Spindle Assembly - 120.65mm Thread Length, 139.7mm OAL, Cone Cushion Cap, 0.63" Tip Surface Diam, Use with Toggle Clamps
Item #: 44003408
Brand: De-Sta-Co
Model #: 519208
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Application | Toggle Clamps |
| Spindle Material | Carbon Steel |
| Thread Size | 5/16-18 |
| Thread Length (Decimal Inch) | 4.7500 |
| Thread Length (mm) | 120.65 |
| Overall Length (mm) | 139.70 |
| Overall Length (Decimal Inch) | 5.5000 |
| Tip Type | Cap |
| Tip Surface Diameter (mm) | 16.00 |
| Tip Surface Diameter (Decimal Inch) | 0.6300 |
| Tip Cap Material | Neoprene |
| Tip Cap Shape | Cone Cushion |
| Tip Maximum Diameter (mm) | 19.05 |
| Tip Maximum Diameter (Decimal Inch) | 0.7500 |
| Tip Cap Hardness (Durometer) | 70-80A |
| Nut Height (Decimal Inch) | 0.1900 |
| Nut Height (mm) | 4.83 |
| Minimum Operating Temperature (F) | -22.00 |
| Maximum Operating Temperature (F) | 212.00 |
| Includes | Jam Nuts |
| For Use With | Manual Operated Clamp |
