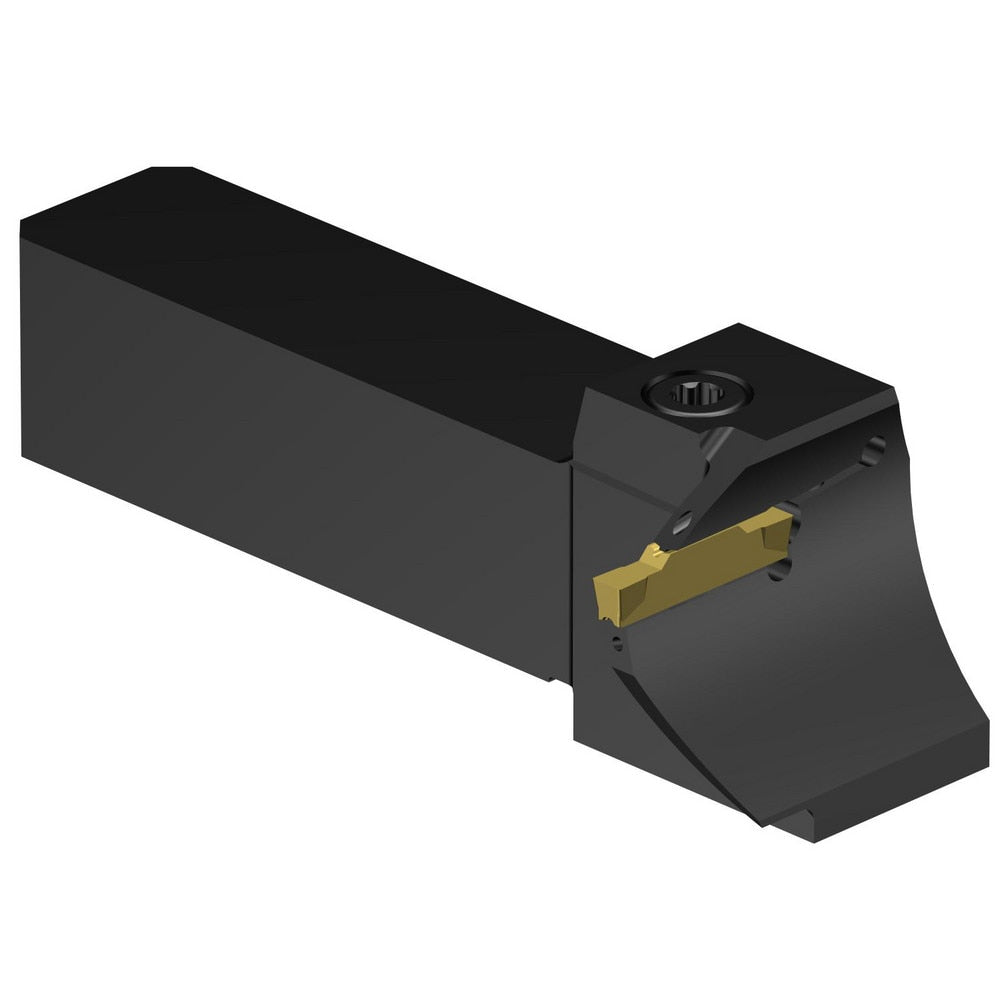

Indexable Grooving Toolholder: C2A-QS25-LGH15B-52CB, Internal or External, Left Hand, Right Hand & Neutral, 2.8347" Max Groove Width
Item #: 01203892
Brand: Sandvik Coromant
Model #: 8289927
Product Specifications
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Insert Seat Size | 4.00 |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Minimum Groove Width (Decimal Inch) | 2.0472 |
| Minimum Groove Width (mm) | 52.00 |
| Maximum Groove Width (mm) | 72.00 |
| Toolholder Style | C2A-QS..LG..B..CB |
| Maximum Groove Width (Decimal Inch) | 2.8347 |
| Insert Holding Method | Screw; Clamp |
| Compatible Insert Size Code | H2 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | CoroCut 2 |
| Overall Length (mm) | 107 |
| Overall Length (Decimal Inch) | 4.2126 |
| Back of Bar to Cutting Edge (mm) | 107.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.2126 |
| Center to Cutting Edge (Decimal Inch) | 1.6535 |
| Center to Cutting Edge (mm) | 42.00 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Height (mm) | 25.000 |
| Head Length (Decimal Inch) | 1.9095 |
| Head Length (mm) | 48.50 |
| UNSPSC Code | 27112809 |
| Vibration Dampening | No |
| Maximum Groove Outside Diameter (mm) | 72.00 |
| Maximum Groove Outside Diameter (Decimal Inch) | 2.8347 |
| Minimum Axial Groove Inside Diameter(mm) | 52.0000 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 2.0472 |
| Mount Type | Clamp |
| Full Radius Insert | No |
| Manufacturers Catalog Number | C2A-QS25-LGH15B-52CB |
| Toolholder Material | Steel |
| Insert Hand | Neutral; Left Hand; Right Hand |
| Complete Insert Compatibility | C2I-H2-0400- |
| Coolant Through | Yes |
