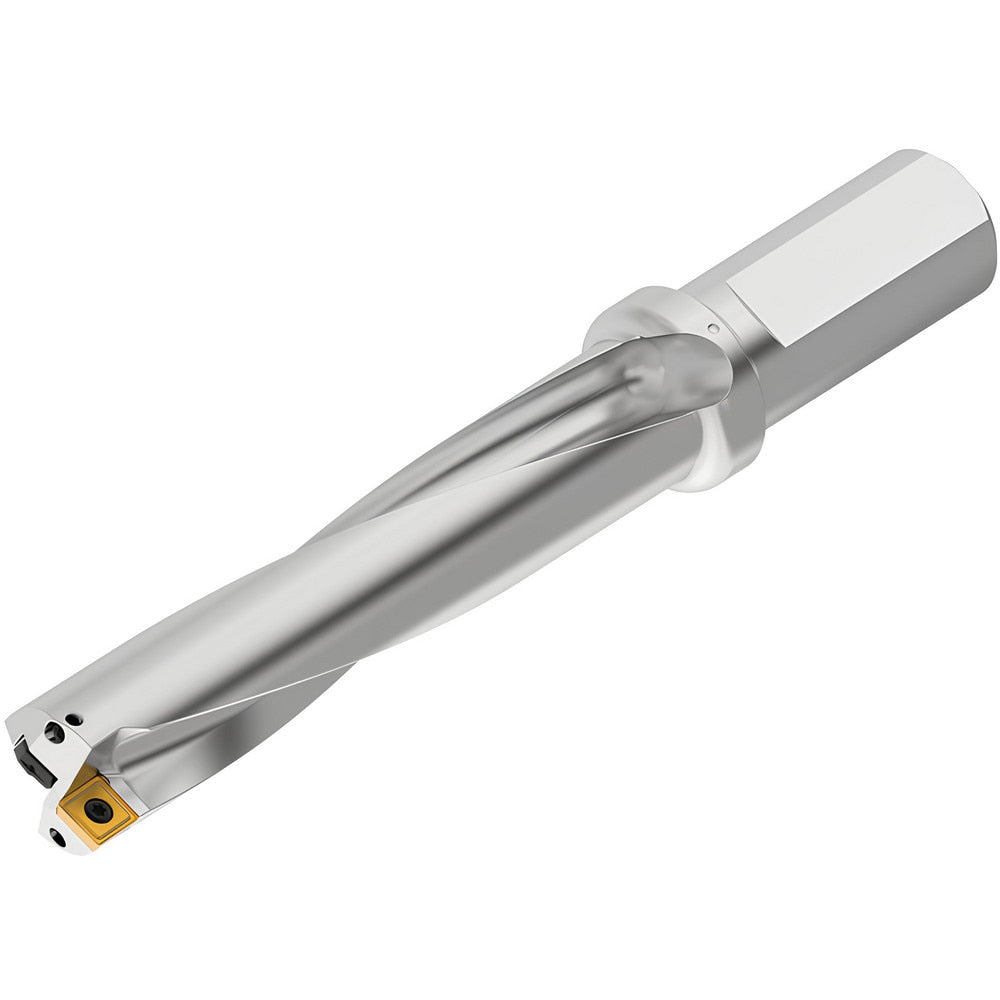

Indexable Insert Drill: DFPR1219R5WB125, 31.96 mm Max Dia, 154.81 mm Max Depth, 5xD, 31.75 mm Shank Dia
Item #: 04803946
Brand: Kennametal
Model #: 7031246
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 31.96 |
| Maximum Drill Diameter (Decimal Inch) | 1.2580 |
| Maximum Drill Depth (Inch) | 6-3/32 |
| Maximum Drill Depth (Decimal Inch) | 6.0940 |
| Maximum Drill Depth (mm) | 154.81 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 110406; 120405 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 9.2830 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 6.0940 |
| Flute Length (mm) | 159.81 |
| Body Length | 235.81 |
| Body Length (Decimal Inch) | 6.9210 |
| Shank Length (Decimal Inch) | 2.3620 |
| Shank Length (mm) | 60.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4690x0.1420; 0.4450x0.1420 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR120405__I; DFPR110406__O |
| Collar Diameter (Decimal Inch) | 1.1831 |
| Collar Diameter (mm) | 30.05 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M4-0.7x8.4T15 |
| Coolant Through | Yes |
