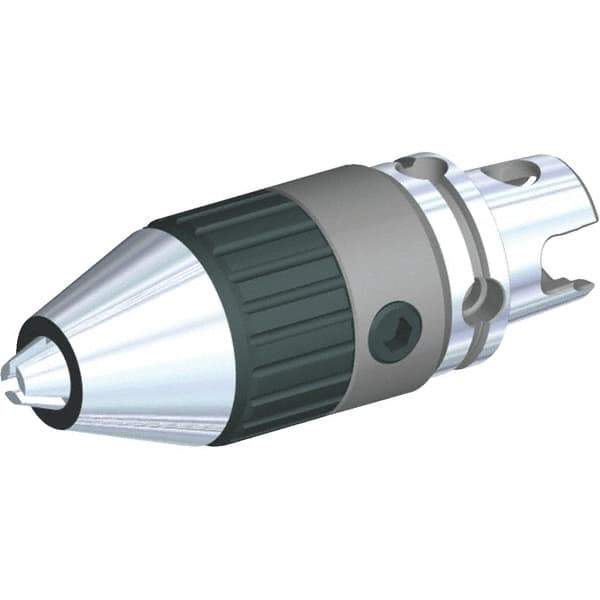

Kennametal - 1 to 13mm Capacity, Integral Shank Drill Chuck - Keyed, Modular Connection, 43mm Sleeve Diam, 91.9mm Open Length
Item #: 42681957
Brand: Kennametal
Model #: 4053778
Exact Tooling IR#: 04
Features and Benefits
Integral shank drill chucks are designed with the arbor (shank) built into the drill chuck, providing greater rigidity and concentricity than a press-fit tapered mount.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 13.00 |
| Maximum Drill Chuck Capacity (Decimal Inch) | 0.5118 |
| Minimum Drill Chuck Capacity (mm) | 1.00 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.0394 |
| Mount Type | Integral Shank |
| Mounting Size | KM40 |
| Key Style | Keyed |
| Material | Steel |
| Shank Type | Modular Connection |
| Open Length (mm) | 91.90 |
| Open Length (Decimal Inch) | 3.6181 |
| Sleeve Diameter (mm) | 43.00 |
| Sleeve Diameter (Decimal Inch) | 1.6929 |
| Modular Connection Size | KM40TS |
| Key Number | Hex 6mm |
| Includes | Wrench |
