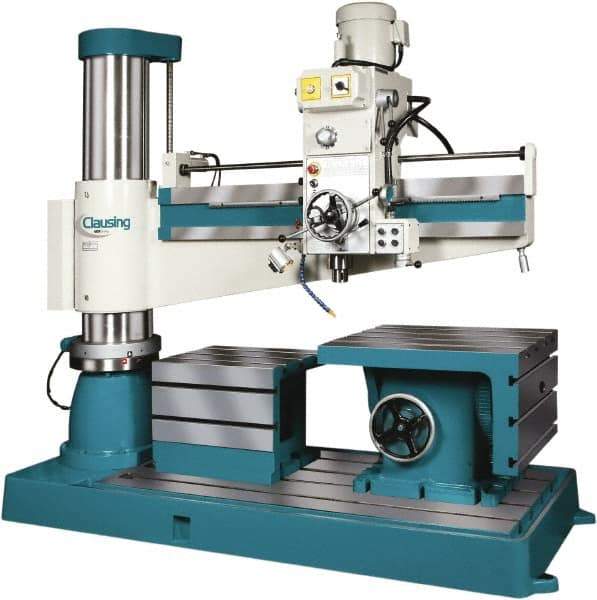

Clausing - 63" Swing, Geared Head Radial Arm Drill Press - 12 Speed, 5 hp, Three Phase
Item #: 42523324
Brand: Clausing
Model #: CLC1600H
Exact Tooling IR#: 04
Features and Benefits
Floor drill presses, also known as standing drill presses, offer more power options than bench drill presses. They are most suited for heavy-duty operations.
Radial arm drill presses are designed for drilling and boring large holes in hard to reach areas as well as countersinking and grinding. The head of the radial drill can be moved, height adjusted and rotated. The spindle can withstand heavy duty operations.
Geared head drive systems are similar to step pulleys, but are driven by a geared transmission. They offer rapid speed changes by turning a hand dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Stand Type | Floor |
| Machine Type | Radial Arm Drill Press |
| Swing Distance (Decimal Inch) | 63.0000 |
| Spindle Speed Control | Geared Head |
| Phase | 3 |
| Spindle Taper Size | 5MT |
| Spindle Travel Length (Decimal Inch) | 10.6300 |
| Horsepower (HP) | 5 |
| Voltage | 230/460 |
| Minimum Spindle Speed (RPM) | 40 |
| Maximum Spindle Speed (RPM) | 1920 |
| Drilling Capacity in Steel (Inch) | 2-19/32 |
| Drilling Capacity in Cast Iron (Inch) | 2-23/64 |
| Tapping Capacity in Steel (Decimal Inch) | 1.9700 |
| Tapping Capacity in Cast Iron (Decimal Inch) | 2.3600 |
| Maximum Chuck Capacity (Decimal Inch) | 1.0000 |
| Radial Head | Radial Head |
| Number of Spindle Speeds | 12 |
| Power Downfeed Rate | 0.003 |
| Spindle to Table Distance (Decimal Inch) | 63.0000 |
| Minimum Spindle to Column Distance (Inch) | 13-25/32 |
| Spindle to Column Distance (mm) | 1600.00 |
| Spindle to Column Distance (Decimal Inch) | 63.0000 |
| Table Length (Decimal Inch) | 70.9000 |
| Table Width/Diameter (Decimal Inch) | 40.4000 |
| Table Tilt (Degrees) | 45.00 |
| Base Length (Decimal Inch) | 100.4000 |
| Base Width (Decimal Inch) | 38.2000 |
| Base Depth (Decimal Inch) | 7.9000 |
| Column Diameter (Decimal Inch) | 17.0000 |
| Radial Arm Length (Inch) | 63 |
| Radial Arm Length (Feet) | 6.00 |
| Overall Length (Decimal Inch) | 105.2000 |
| Overall Height (Decimal Inch) | 94.875 |
| Overall Depth (Inch) | 44.1000 |
| Includes | Box Table; Operations & Parts Manual; Tool Kit |
