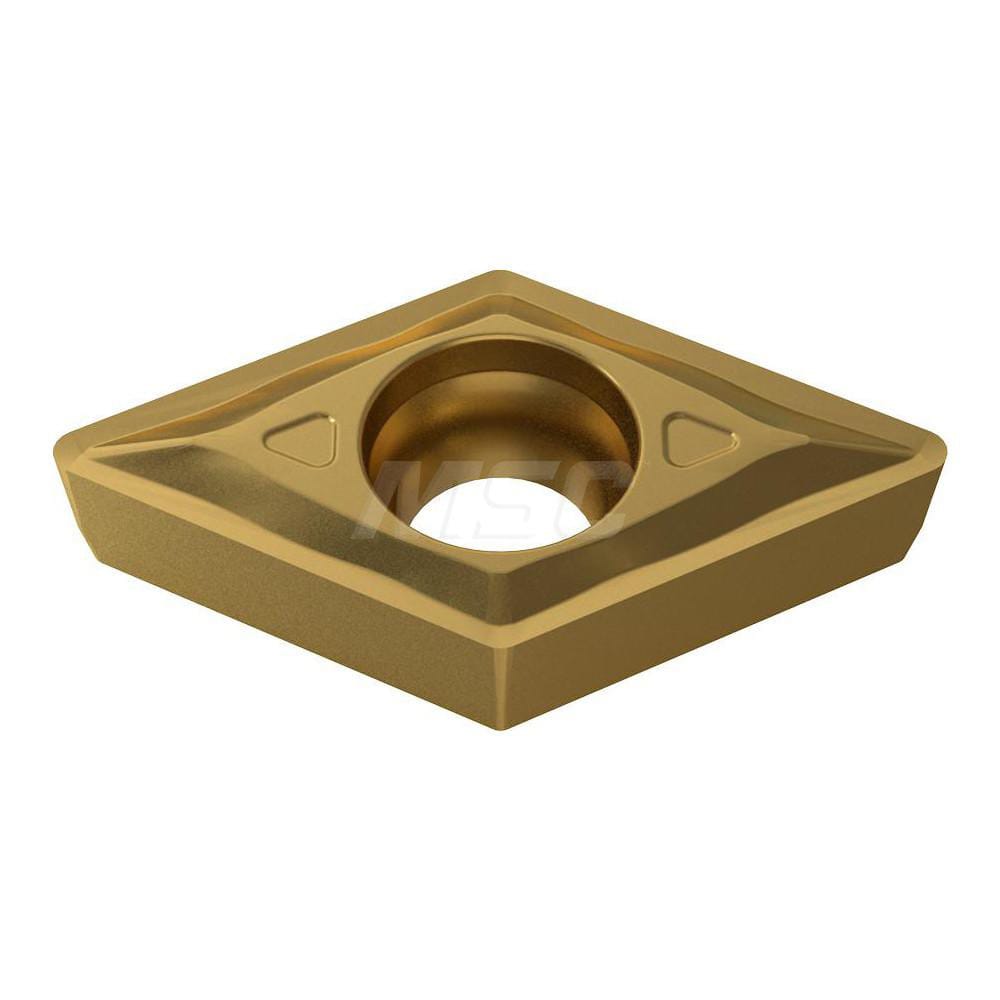

Turning Insert: DCMT070204-UF YG801, Solid Carbide TiAlN Finish, 0.2950″ Long, 1/4″ Inscribed Circle, N/A Series DCMT
Item #: 42407908
Brand: YG-1
Model #: 22000013
Product Specifications
| Insert Style | DCMT |
| Insert Shape Code | D |
| Insert Size Code | 070204 |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | YG801 |
| Inscribed Circle (Inch) | 1/4 |
| Width (Inch) | 1/4 |
| Insert Thickness (Inch) | 1/16 |
| Corner Radius (Inch) | 1/64 |
| Series | DCMT |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Insert Length (Decimal Inch) | 0.2950 |
| Chip Breaker | T |
| Coating/Finish | TiAlN |
