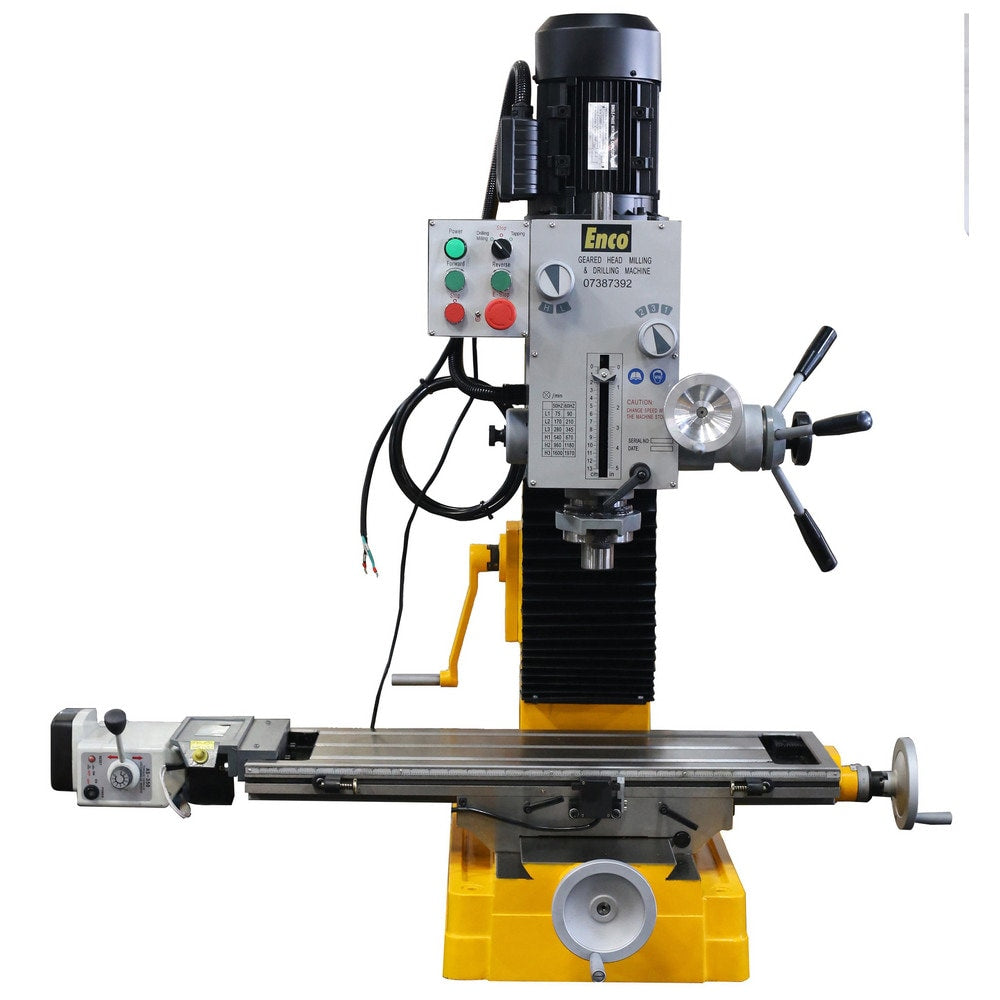

HD Benchtop Mill/Drill with Power Feed & Tapping: 10" x 32" 2 HP
Item #: 07387392
Brand: Enco
Model #: ZX45
Product Specifications
| Drilling Capacity in Steel (Inch) | 1-1/4 |
| End Milling Capacity (Decimal Inch) | 1.25 |
| Face Milling Capacity (Decimal Inch) | 3.125 |
| Left-Hand Head Tilt (Degrees) | 45.00 |
| Right-Hand Head Tilt (Degrees) | 45.00 |
| Cross Travel (Inch) | 7-1/2 |
| Longitudinal Travel (Inch) | 22 |
| Column Type | Square |
| Speed Setting | Single Speed |
| Head Swivel (Degrees) | 45.00 |
| Maximum Spindle to Table Distance (Decimal Inch) | 18.125 |
| Minimum Spindle Speed | 90 |
| Maximum Spindle Speed | 1970 |
| Number Of Spindle Speeds | 6 |
| Number of Spindle Speeds | 6 |
| Number of T-Slots | 3.000 |
| Horsepower | 2 |
| Table Length (Inch) | 31-1/2 |
| Table Width (Inch) | 9-1/2 |
| Phase | Single |
| Quill Diameter (Inch) | 3 |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Inch) | 4-3/4 |
| T-Slot Size (Inch) | 1/2 |
| Voltage | 220V |
| Overall Height (Inch) | 57 |
| Overall Length (Inch) | 49-5/8 |
| Overall Depth (Inch) | 30-3/4 |
| Machine Type | Mill Drill Combination |
| Drilling Capacity in Cast Iron (Inch) | 1-3/4 |
| Maximum Spindle To Column Distance (Inch) | 10-1/8 |
| UNSPSC Code | 23241500 |
