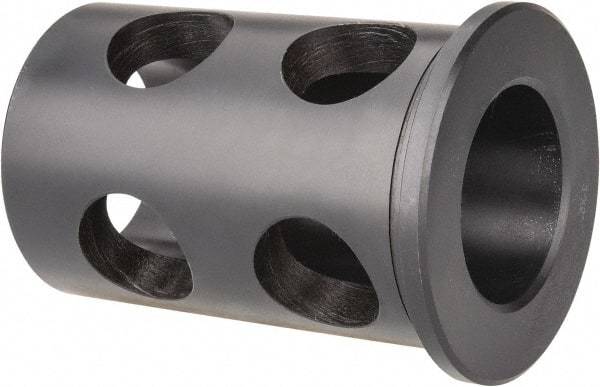

Interstate - 2" ID, 3" OD, 4-1/2" Length Under Head, Type J Lathe Tool Holder Bushing - Type J, 0.365 Inch Thick Head
Item #: 42056523
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
J toolholder bushings are designed with a long solid body and two cearance holes for set screw clamping directly onto the tool.
| Product Specifications | |
|---|---|
| Type | J |
| Outside Diameter (Decimal Inch) | 3.0000 |
| Outside Diameter (mm) | 76.20 |
| Outside Diameter (Inch) | 3 |
| Inside Diameter (Inch) | 2 |
| Inside Diameter (Decimal Inch) | 2.0000 |
| Head Thickness (Decimal Inch) | 0.3650 |
| Length Under Head (mm) | 114.30 |
| Length Under Head (Inch) | 4-1/2 |
| Length Under Head (Decimal Inch) | 4.5000 |
| Distance Between Hole Centers (Inch) | 2 |
