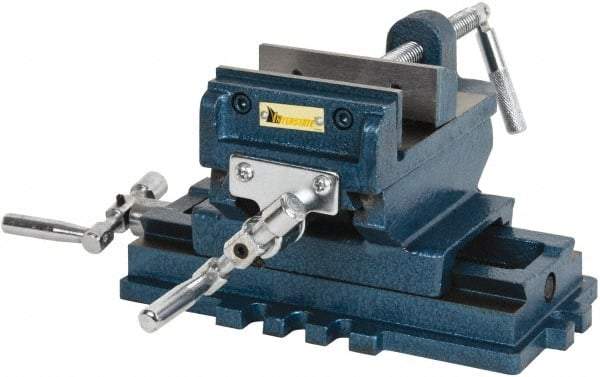

Interstate - 3-35/64" Jaw Opening Capacity x 1.18" Throat Depth, Horizontal Drill Press Vise - 4" Wide x 1.18" High Jaw, Cross Slide Base, Standard Speed, 8" OAL x 5.1" Overall Height, Cast Iron
Item #: 42053827
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Cross slide drill press vises allow for precise workpiece positioning by X and Y-axis travel (left/right and forward/back) motion.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 3-35/64 |
| Jaw Opening Capacity (Decimal Inch) | 3.5469 |
| Throat Depth (Decimal Inch) | 1.1800 |
| Orientation Type | Horizontal |
| Base Motion Type | Cross Slide |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 8 |
| Overall Height (Decimal Inch) | 5.1000 |
| Vise Material | Cast Iron |
| Jaw Height (Decimal Inch) | 1.1800 |
