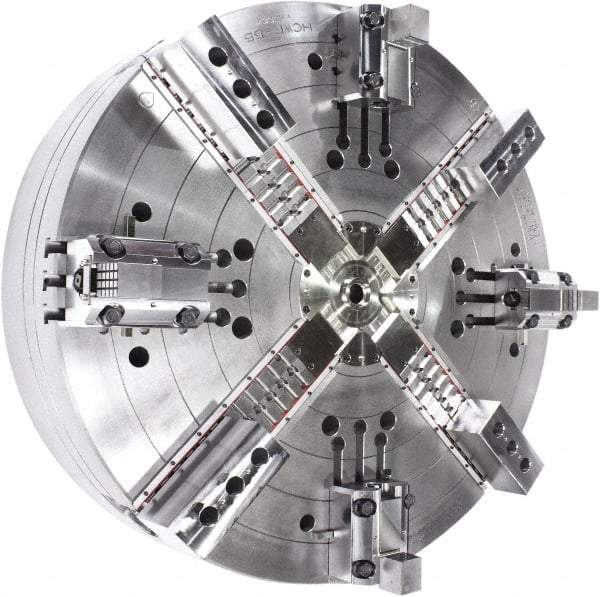

Samchully - 4 Jaw, 1400mm Chuck Diam, Plain Back Mount, 0mm Through Hole Diam, Drawbar Hydraulic Power Lathe Chuck - Tongue & Groove Jaw Interface, 400 RPM, Steel Body
Item #: 41810052
Brand: Samchully
Model #: HCWF55
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (mm) | 1400.00 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 0.00 |
| Chuck Actuation Style | Drawbar |
| Operation Type | Hydraulic |
| Jaw Interface Type | Tongue & Groove |
| Jaw Stroke Diameter (mm) | 60.00 |
| Piston Stroke Length (mm) | 60.00 |
| Maximum Static Gripping Force (kN) | 210.00 |
| Maximum Static Gripping Force (lbf) | 0.93 |
| Maximum RPM | 400 |
| Body Material | Steel |
| Power Cylinder Compatibility | DYV21560 |
| Includes | T-Nuts; Mounting Bolts; Master Jaws; Soft Top Jaws; Handle |
