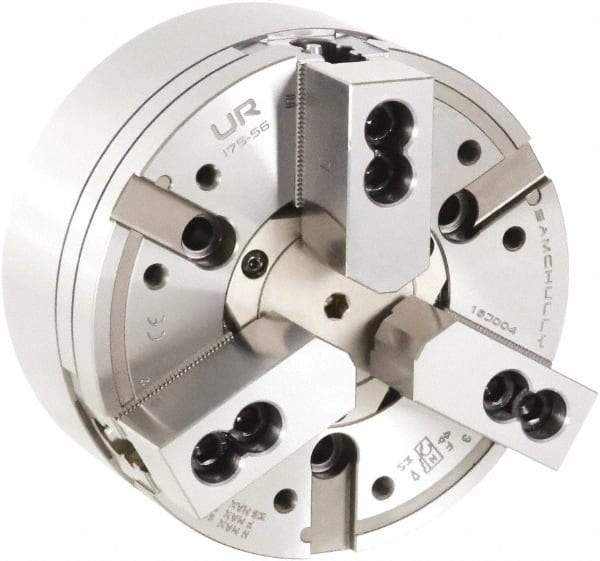

Samchully - 3 Jaw, 254mm Chuck Diam, Plain Back Mount, 82mm Through Hole Diam, Drawtube Hydraulic Power Lathe Chuck - 1/16" x 90° Serrated Jaw Interface, 4,000 RPM, Steel Body
Item #: 41809930
Brand: Samchully
Model #: UR250BLANK
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (mm) | 254.00 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 82.00 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Jaw Interface Type | 1/16" x 90 Serrated |
| Jaw Stroke Diameter (mm) | 10.00 |
| Piston Stroke Length (mm) | 22.00 |
| Maximum Static Gripping Force (kN) | 145.00 |
| Maximum Static Gripping Force (lbf) | 0.64 |
| Maximum RPM | 4000 |
| Body Material | Steel |
| Power Cylinder Compatibility | SD18582 |
| Includes | T-Nuts; Mounting Bolts; Master Jaws; Soft Top Jaws; Handle; Blank Drawnut |
