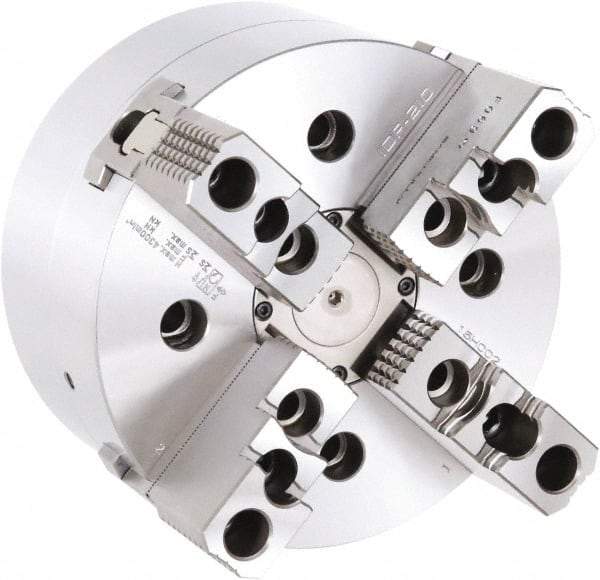

Samchully - 4 Jaw, 304mm Chuck Diam, Plain Back Mount, 0mm Through Hole Diam, Drawbar Hydraulic Power Lathe Chuck - 1.5mm x 60° Serrated Jaw Interface, 3,000 RPM, Steel Body
Item #: 41809773
Brand: Samchully
Model #: IDF310
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (mm) | 304.00 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 0.00 |
| Chuck Actuation Style | Drawbar |
| Operation Type | Hydraulic |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Jaw Stroke Diameter (mm) | 6.20 |
| Piston Stroke Length (mm) | 12.00 |
| Maximum Static Gripping Force (kN) | 180.00 |
| Maximum Static Gripping Force (lbf) | 0.80 |
| Maximum RPM | 3000 |
| Body Material | Steel |
| Power Cylinder Compatibility | Y1530RE |
| Includes | T-Nuts; Mounting Bolts; Master Jaws; Soft Top Jaws; Handle; Blank Drawnut |
